Assistant Bucket

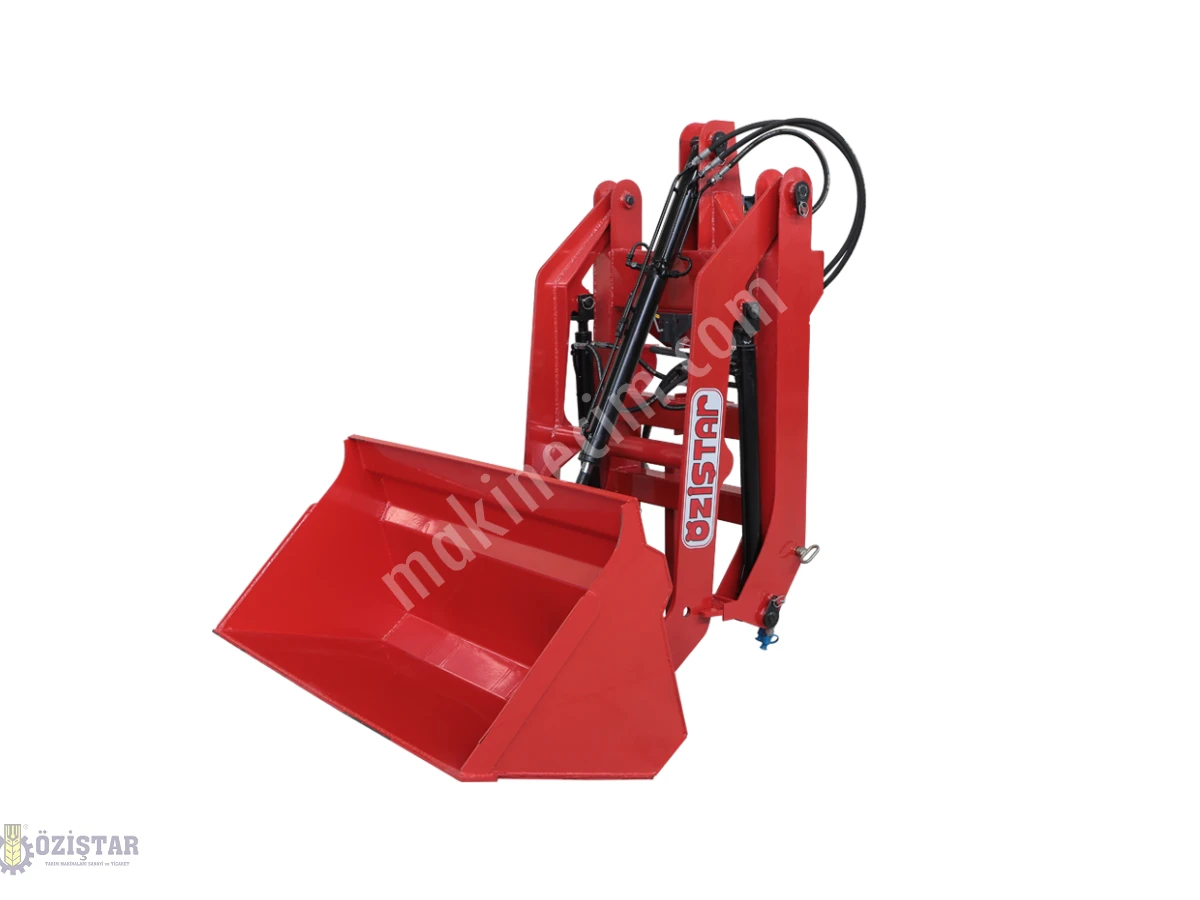

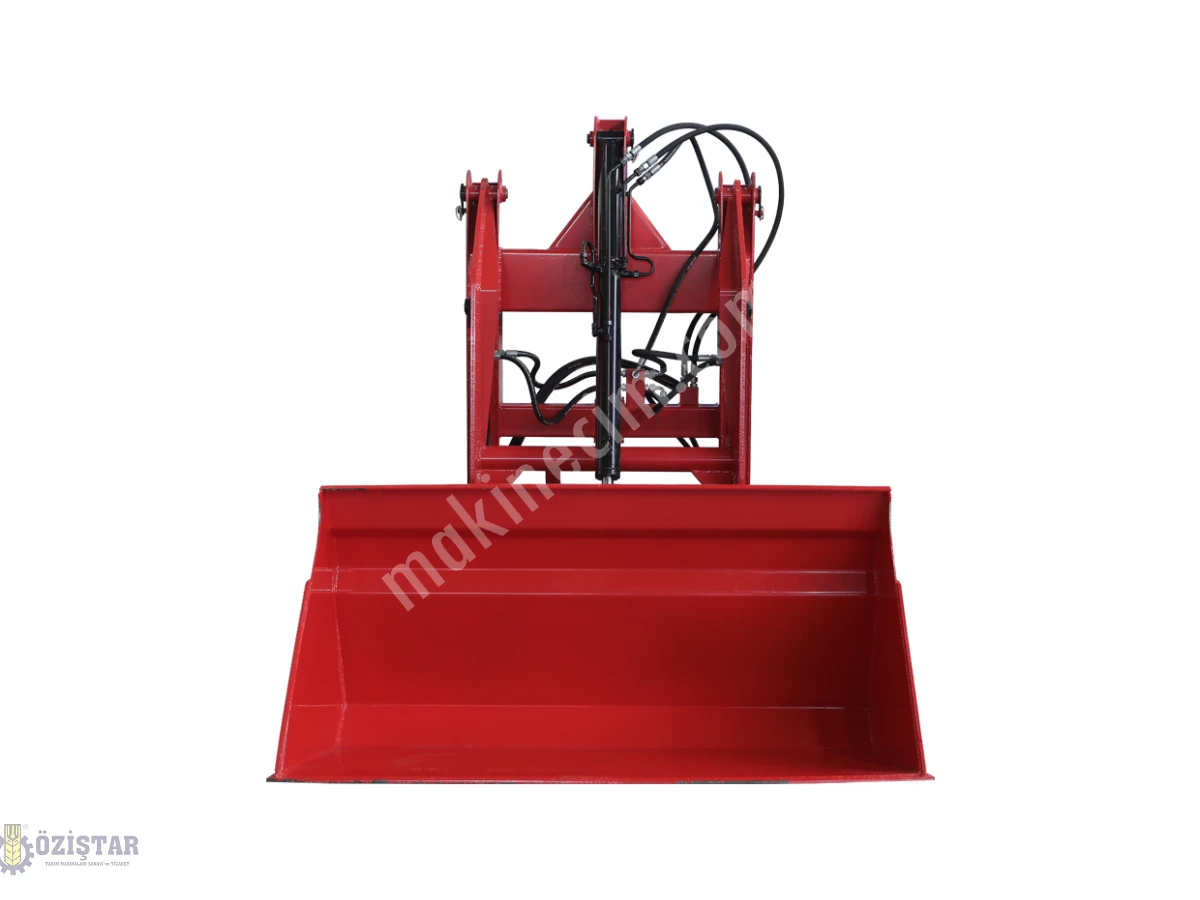

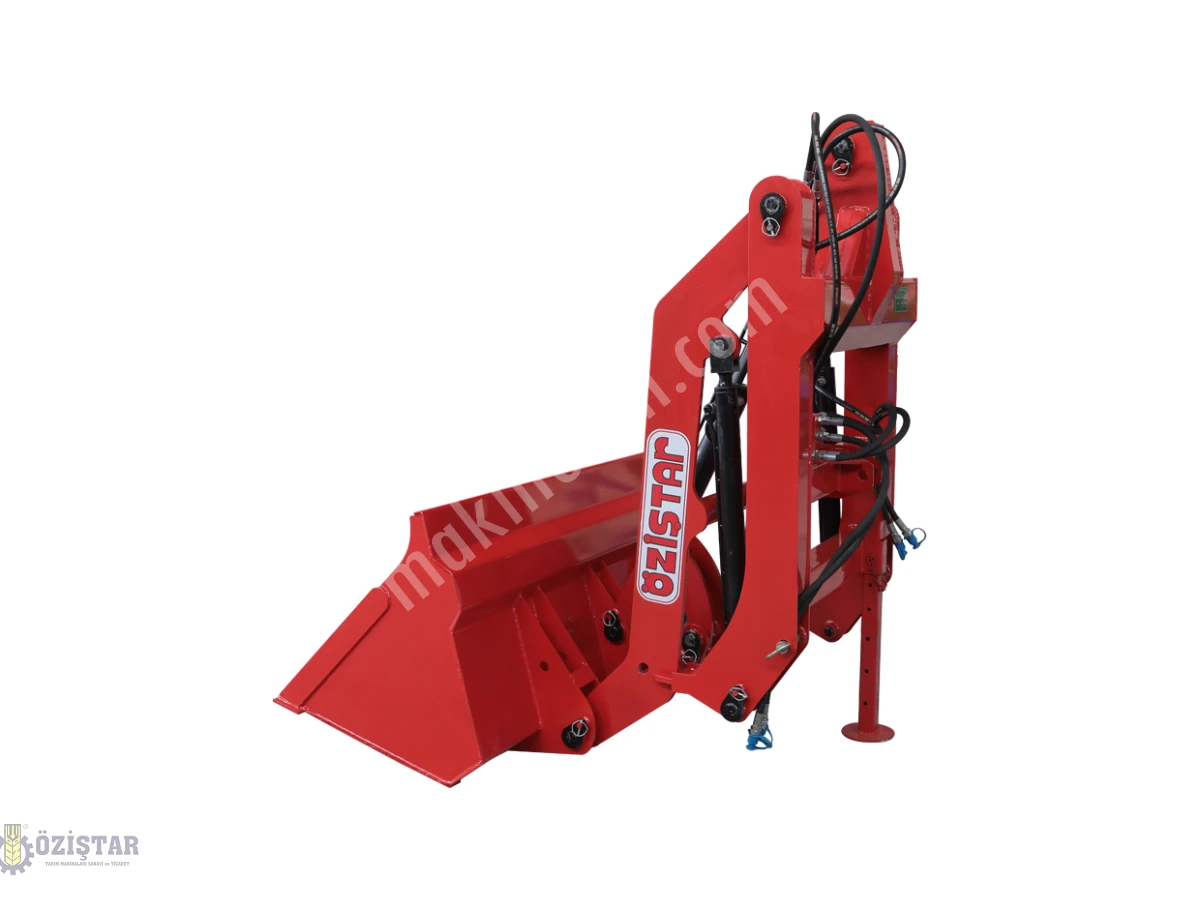

The tractor rear loader produced by ÖZİŞTAR Tar. Mak. San. ve Tic. is manufactured in single and double hydraulic cylinder types. Additionally, both types are available in Short, Normal, and Extended models. The bucket includes a three-point hitch system, machine carrier frame, bucket supporting frame, bucket, bucket blades, hydraulic cylinder and hose connections, discharge lever for the discharge mechanism, return spring, and support foot. The bucket is attached to the bucket frame in a way that allows it to rotate and is fixed with two pins. When the bucket is in the closed position, it is lowered to the level of the material to be loaded using the hydraulic cylinder and tractor hydraulic system. Then, by reversing the tractor, the bucket penetrates and fills with the material. After the bucket is filled, it is lifted by the hydraulic system and when it reaches the discharge location, the discharge lever is pulled to empty it. The emptied bucket returns to its original (closed) position thanks to the return spring.

The tractor rear loader produced by ÖZİŞTAR Tar. Mak. San. ve Tic. is manufactured in single and double hydraulic cylinder types. Additionally, both types are available in Short, Normal, and Extended models. The bucket includes a three-point hitch system, machine carrier frame, bucket supporting frame, bucket, bucket blades, hydraulic cylinder and hose connections, discharge lever for the discharge mechanism, return spring, and support foot. The bucket is attached to the bucket frame in a way that allows it to rotate and is fixed with two pins. When the bucket is in the closed position, it is lowered to the level of the material to be loaded using the hydraulic cylinder and tractor hydraulic system. Then, by reversing the tractor, the bucket penetrates and fills with the material. After the bucket is filled, it is lifted by the hydraulic system and when it reaches the discharge location, the discharge lever is pulled to empty it. The emptied bucket returns to its original (closed) position thanks to the return spring.

Precautions During Transport and Shipment

When loading the machine onto transport vehicles, it must be protected against friction and hard impacts. Necessary fastening and securing materials should be used to protect the machines from impacts and friction during transportation on the transport vehicle.

Machine Assembly and Preparation for Use

Machine Assembly

For attaching the three-point hydraulic system machine to the tractor, the tractor is brought close to the machine. First, the left lower linkage arm, then the right lower linkage arm, and finally the upper linkage arm are attached to the machine. The machine connected to the tractor is centered relative to the tractor axle using the tractor side stabilizer arms. Desired direction and angle adjustments should be made on the machine.
