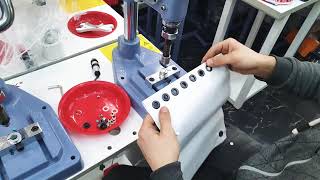

Arm Impact Press Wide Base Km 650

Lever Impact Manual Accessory Fastening Machine

Impact Power : max. 1300 kg / cm2
Part Height: 320 mm.
Column Diameter: Ø 36 mm.
Between Shafts: 138 mm
Table Width: 160 x 160 mm
Collet Hole : Ø 9 mm.
T Channels: 8 H 12 DIN 650
Dimensions: 640 X 380 X 170 mm
Weight : 27 kg.

Our KM 650 arm impact press consists of cast iron and is processed on our CNC benches by our expert team. The machine consists of two casting parts, height adjustment can be made. Iron parts are produced with the parts coming out of heat treatment and irrigation.

Our machine is very easy to use, it is ready for use after attaching the lower and upper molds and making the center adjustment. The center adjustment is made by loosening the Allen screw on the back of the upper body. After the settings, you can perform the nailing operation after you put your material in the upper and lower slots.

Mold changing is a 1-minute process. The maintenance of the machine is very simple, it is carried out by lubricating the shaft system, which goes up and down, after cleaning it well once a week with grease oil.

Usage areas

Advertisers, sign makers, posters, eyelets, textiles eyelets, rivets, button coverings, hooks, snap fasteners, trops, snaps, etc. in your works, in the assembly of electricity and electronics in the industry, in the assembly of doors and windows; aluminum, louver, packaging etc. in your works, in traffic plate registration; marking etc. in your works; It is used in automotive and printing, punching, punching, hemming, fastening, cosmetics and toy assembly. You can use it by changing molds in all your works with a single machine.

Technicial Specifications

Impact Power : max. 1300 kg / cm2
Part Height: 320 mm.
Column Diameter: Ø 36 mm.
Between Shafts: 138 mm
Table Width: 160 x 160 mm
Collet Hole : Ø 9 mm.
T Channels: 8 H 12 DIN 650
Dimensions: 640 X 380 X 170 mm
Weight : 27 kg.

Our company, which produces arm impact machines, does not compromise on quality.
