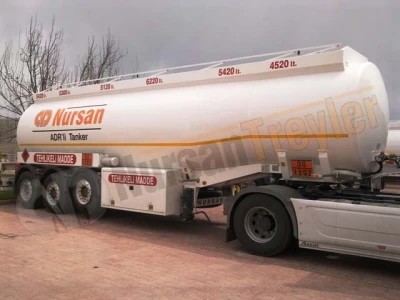

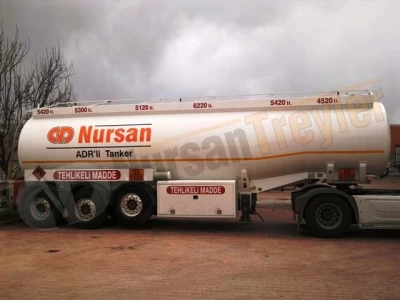

ADR COMPATIBLE TANKER

CHASSIS: S235 JR STELL

BODY:  ROUND-CROSS SECTION, S235JR STELL,4MM THICKNESS,WELDING BY ROBOT TECHNIQUE  UNDER THE EUROPEAN STANDARDS

TOP POOL:  2.5 MM THICK,COLLECTS RAINWATER,DRANAIGE WITH  TWO PIPE

LOADING SYSTEM: EACH OF THE COMPARTMENTS HAVE MANHOLE COVER  WITH ADR CERTIFICATE.YOU CAN LOAD  FROM BOTTOM VALVE OR  TOP VALVE

UNLOADING SYSTEM: IN THE CABINET,WITH ADR CERTIFICATE COUPLINGS AND ON  THE TANK ;BOTTOM UNLOADING VALVES

MANHOLE COVER:IMPORTED,0.28 BAR UNLOADING TOP MANHOLE COVER

OVERFILL SENSOR:IMPORTED,OVERFILL SENSOR ON THE MENHOLE COVER

VAPOUR RECOVERY VALVE:IMPORTED,0.25 BAR ADR CERTIFICATE

DIPSTICK: INSIDE THE TANK,MEASURES THE  LEVEL OF THE OIL ON THE MANHOLE COVER

BOTTOM VALVE:IMPORTED, 2.5 BAR UNLOADING WITH ADR CERTIFICATE

API COUPLING:IMPORTED,4” FİXED İN THE CABİNET FOR BOTTOM LOADING

SOCKET:IMPORTED,10 PIM,FIXED IN THE CABINET

PNEUMATIC CONTROL UNIT: FOR EACH OF THE COMPORTMENT FOR CONTROLLING,SEQUENTIAL,FIXED IN THE CABINET

VAPOUR RECOVERY  ADAPTOR:IMPORTED,FIXED IN THE CABINET

BOTTOM VALVE PIPES:4” WITH ADR CERTIFICATE

BOTTOM VALVE ELBOWS:4”,WELDED BY ADR REGULATIONS

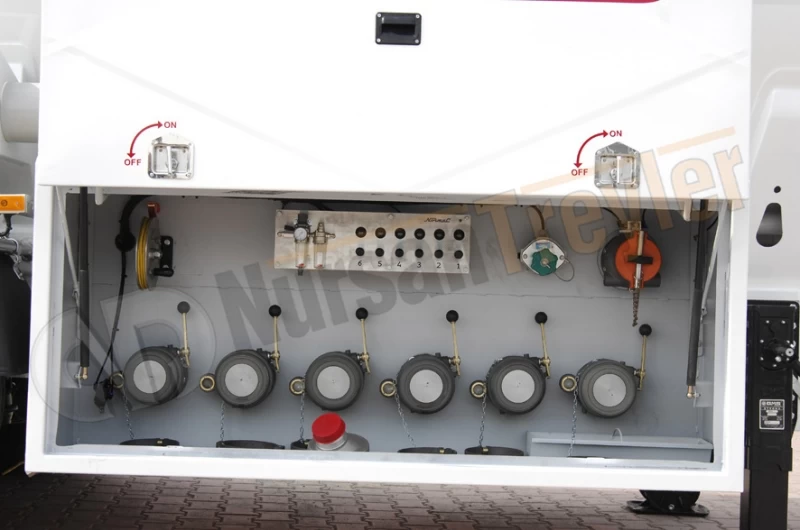

CABINET:FOR UNLOADING/LOADING VALVES AND THERE IS  A VALVE,1/2”  FOR CLEANING AND DRAINAGE.

PLATFORM AND LADDER:  1 LADDER BEHIND THE TANK,WALKING PLATFORM ON THE TOP,PNEUMATIC  GUARDS CAN BE OPENED OR CLOSED  TO PREVENT FALLING

CHASSIS ACCESORY: UNDER THE STANDARDS OF SAE AND DIN,2 “ KİNG-PİN,25 TON CAPASITY LANDING GEARS,70/222/AT STANDARDS  REAR BUMPER,1 SPARE TYRE WITH REDUCTION GEAR,6 PILOT,RIGID PLASTIC MUDGURADS,12  MUDGUARD HOLDER.

AXLE:  3 GIGANT,EACH OF THEM HAS 25 TON CAPASITY

AXLE LIFTING: CONTROLLING IN THE CABIN FRONT LFTING SYSTEM

SUSPANSION:PARABOLIC Z SPRING,AIR SUSPANSION

TYRE:385/65 R 22.5 BRIDGESTONE OR  LASSA 6+1

RIM :11.75X22.5 6 ALIMINYUM,1  METAL

BRAKE SYSTEM: R 13/90 STANDARDS,PHANTOM CIRCUIT,PNEUMATIC BRAKE,2S 2 M TEBS G2 HALDEX

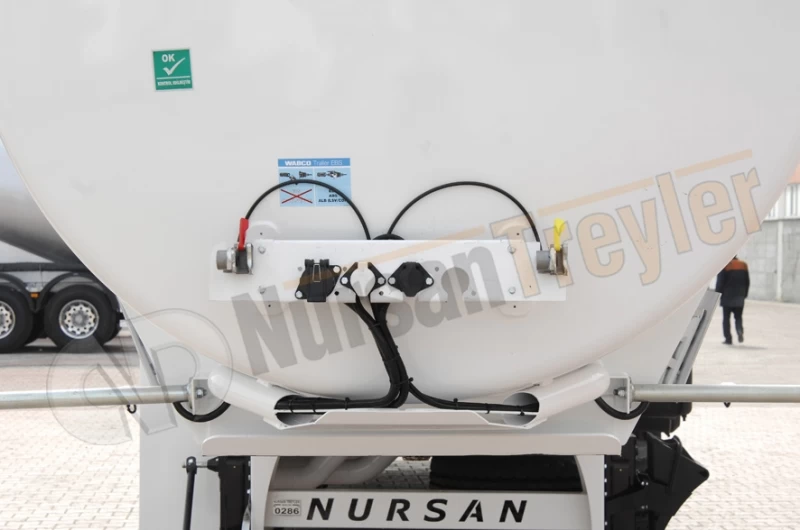

ELECTRONIC:7 PIM ELECKTRIC SOCKET,EEC STANDARDS 24 VOLT

TESTS:X-RAY UNDER THE STANDARDS OF  EN12917-1 AND HYDROSTATIC TESTS 0.5 BAR

PAINT: 2 TIMES PRIMING,2 TIMES PAINTING UNDER 90 DEGREE IN THE OVEN.CUSTOMERS CAN CHOOSE THE COLOURS.

Nursan Trailer can change the diamentions or equipments.Some of the materials can change according to our customer demands.

STANDARD  ACCESORIES:  2 MOUNTING,

                                                1 SPARE TYRE

                                                1 WATER TANK

                                                2 FIRE CABINET

                                                1 UNLOADING ADAPTOR 3”

                                                1 PLASTIC  KIT CABINET

                                               10 METER STATIC GROUNDING CABLE

                                                LIGHTING IN THE CABINET, EMERGENCY BUTTONS(2)

COVER PNEUMATIC SWITCH:

WHEN YOU FORGET TO CLOSE THE  BOTTOM VALVE  CONTROL  VALVE,AFTER  CLOSING THE CABINET DOOR,IT CLOSES  AUTOMATIC.
