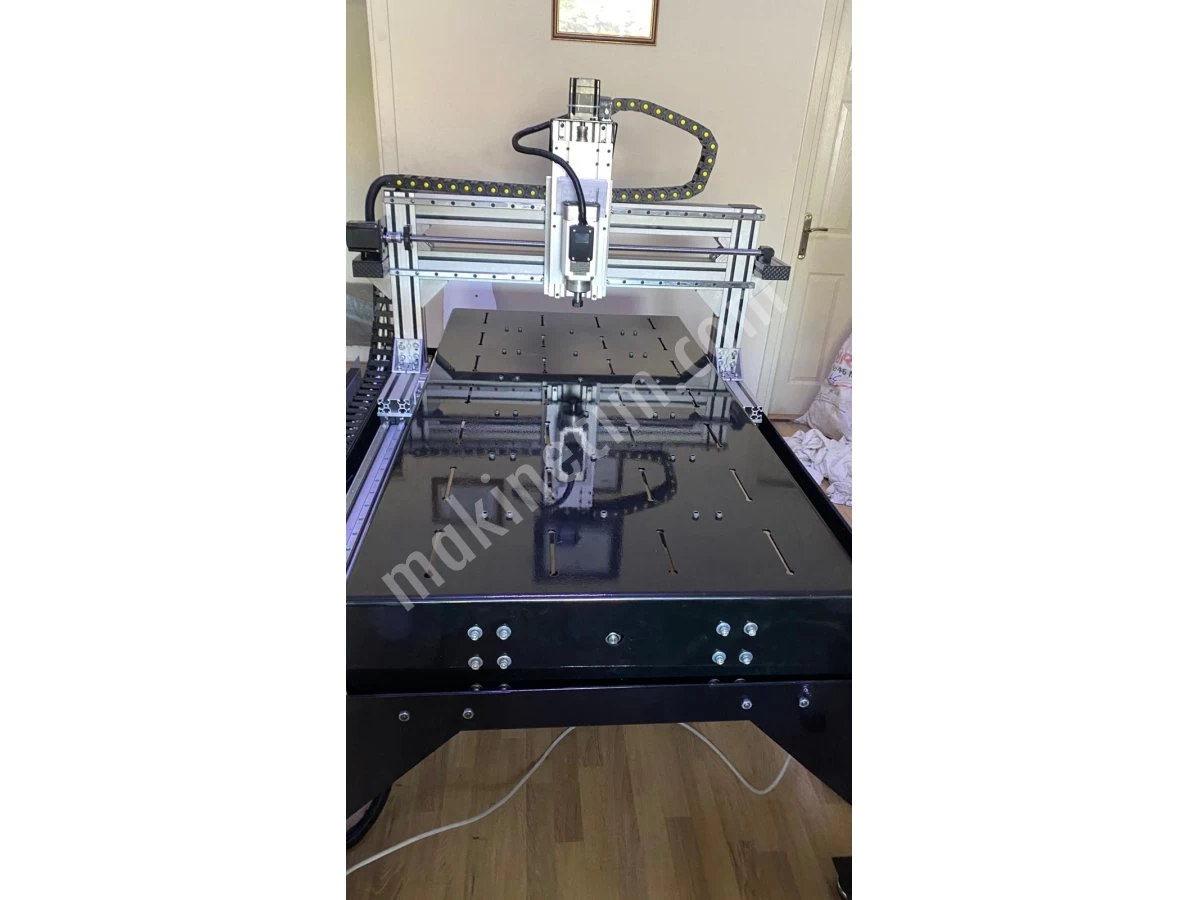

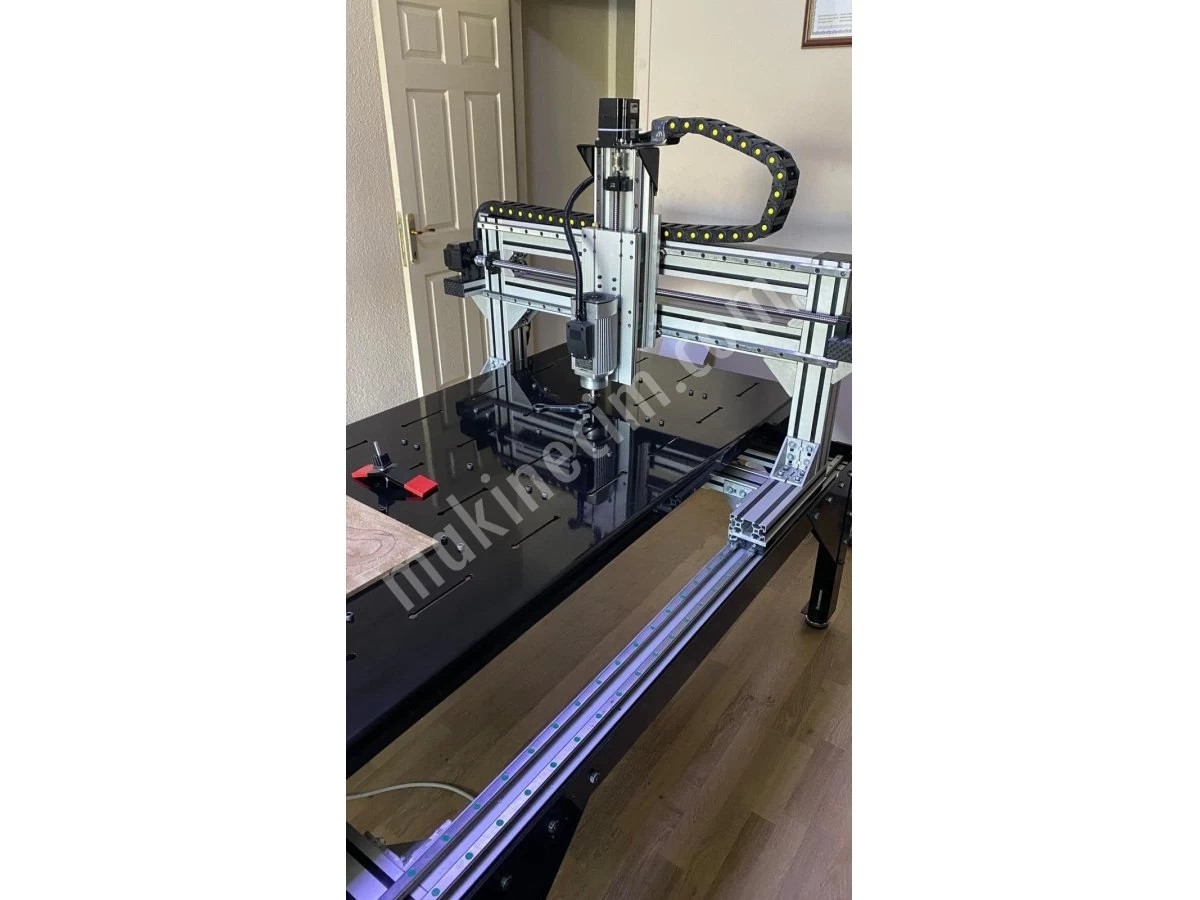

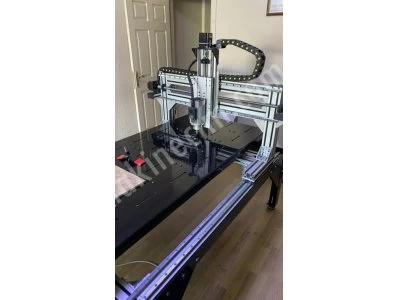

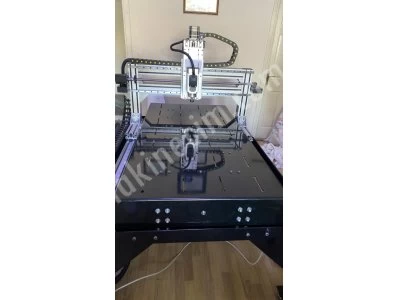

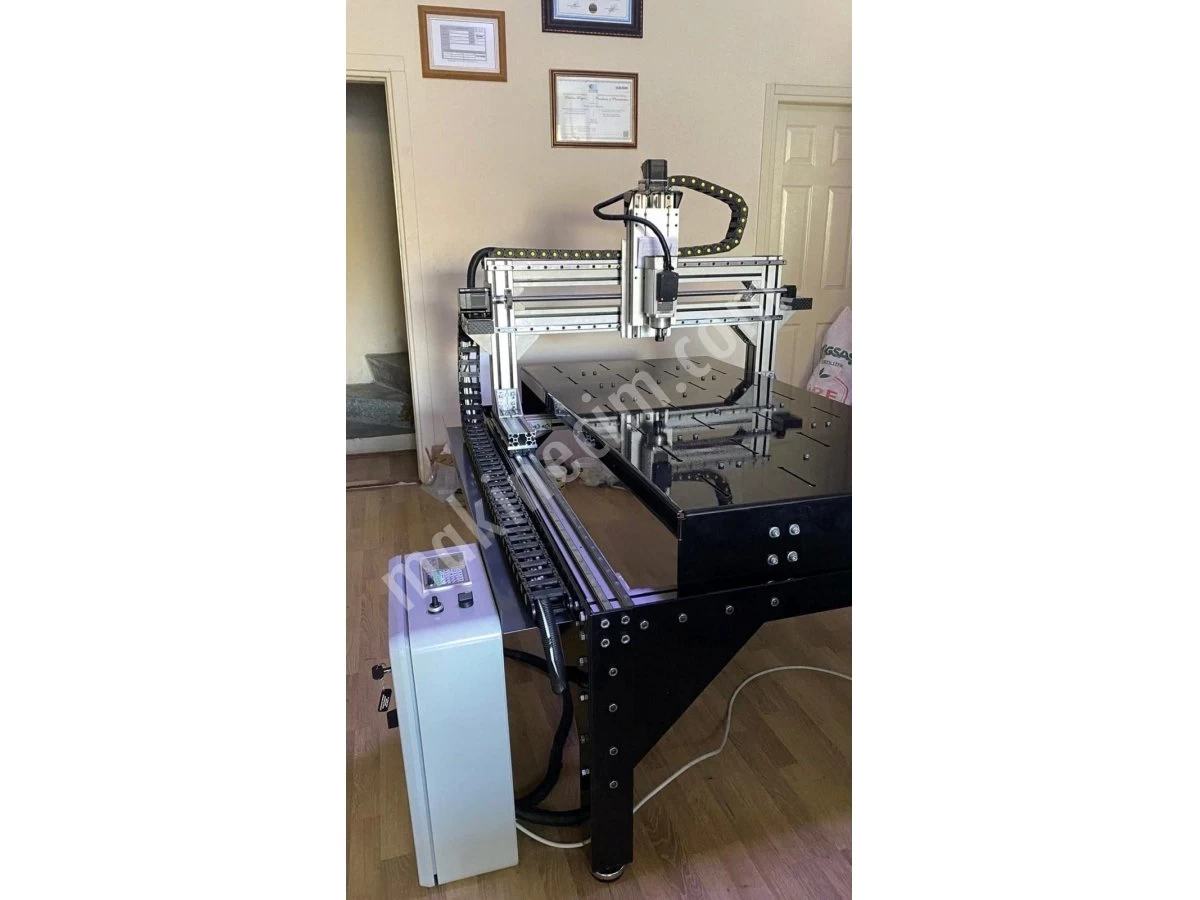

80X140 Special Cnc Router

Professional CNC Router – Precision, Power & Reliability

Our newly completed CNC router has been engineered with a strong focus on quality and performance.

It is entirely our own production, carefully hand-assembled from the mechanical frame to the electronics.

Designed for both amateur and professional use, this machine delivers high precision, quiet operation, and long service life.

⸻

⚙ TECHNICAL SPECIFICATIONS

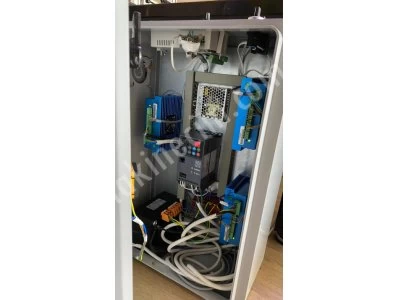

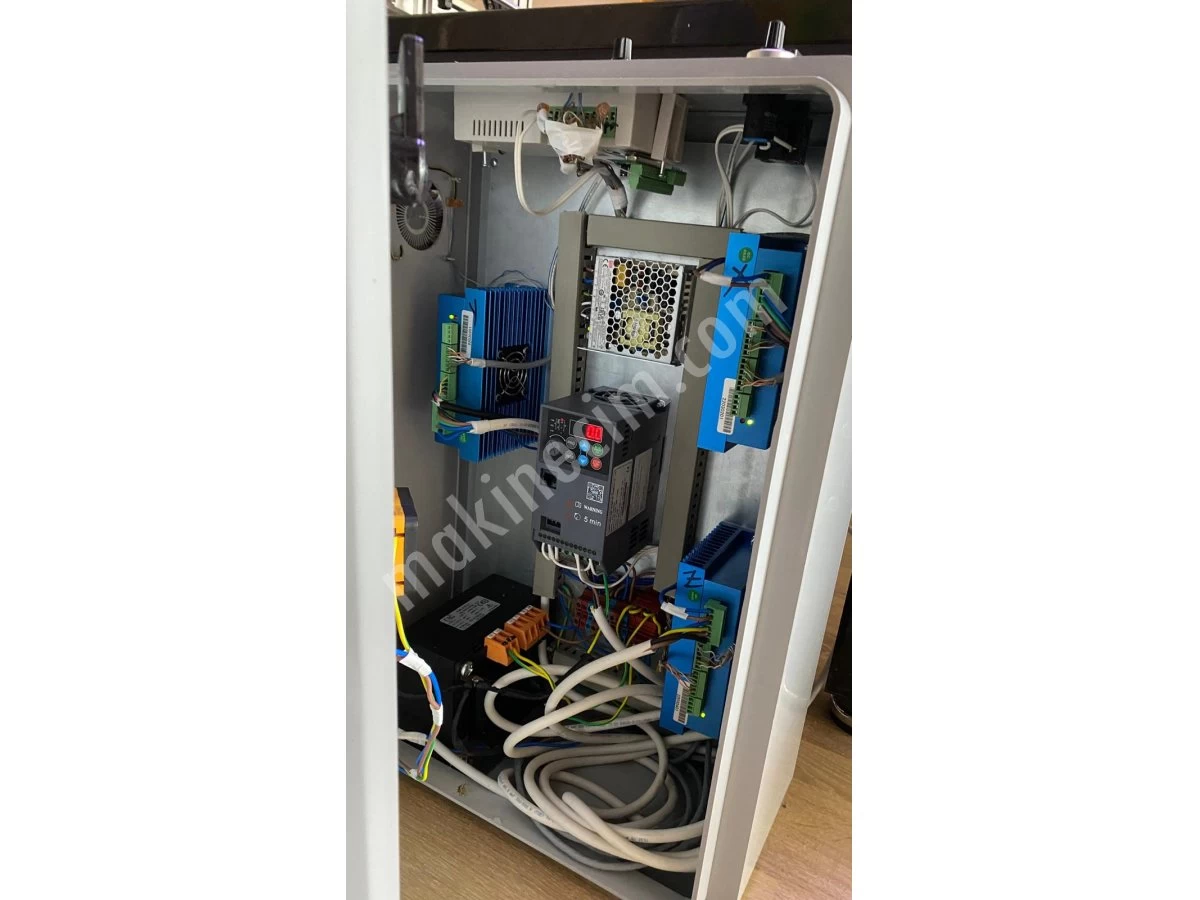

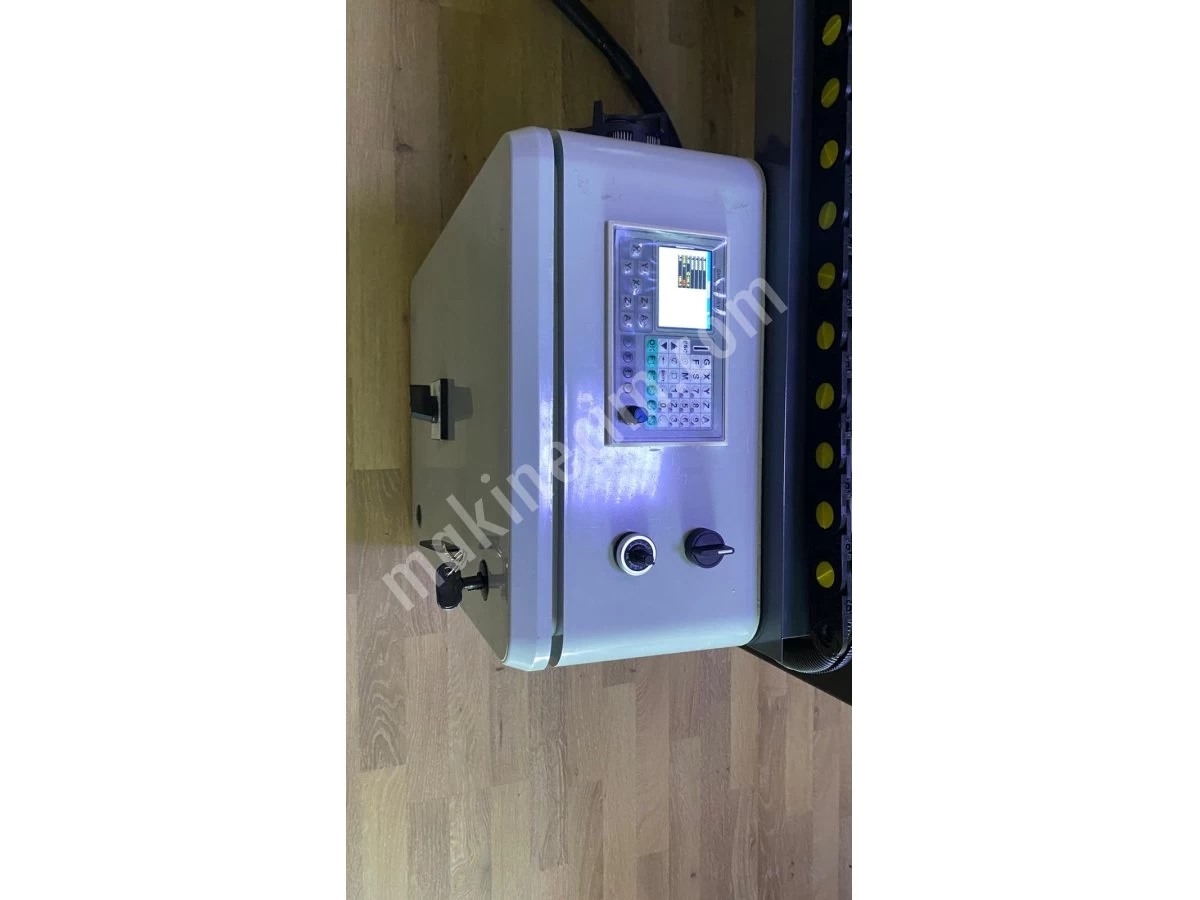

• Control Unit: SMC 4-4-16A16B

• Drivers: HSS86 Hybrid Servo (Closed Loop)

• Spindle Driver: K10-2S02R2G

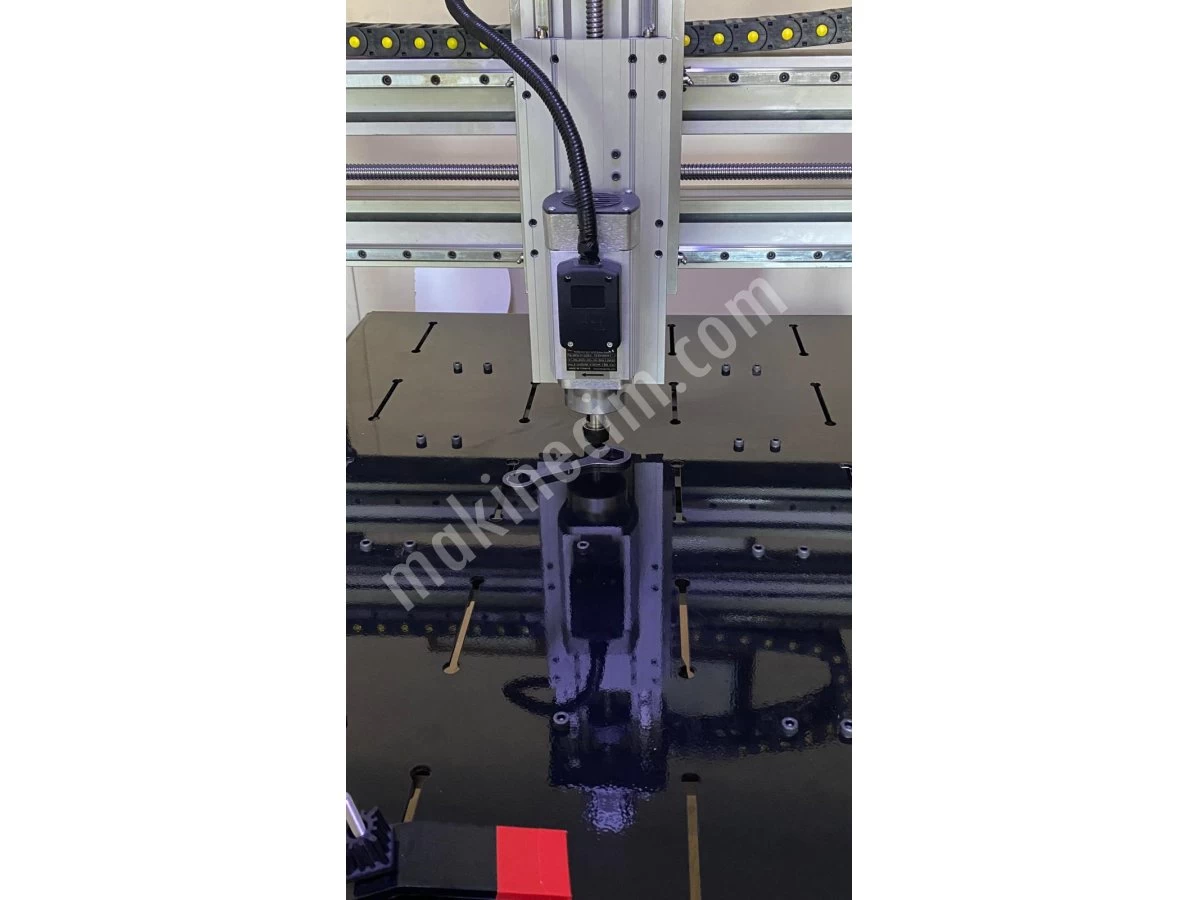

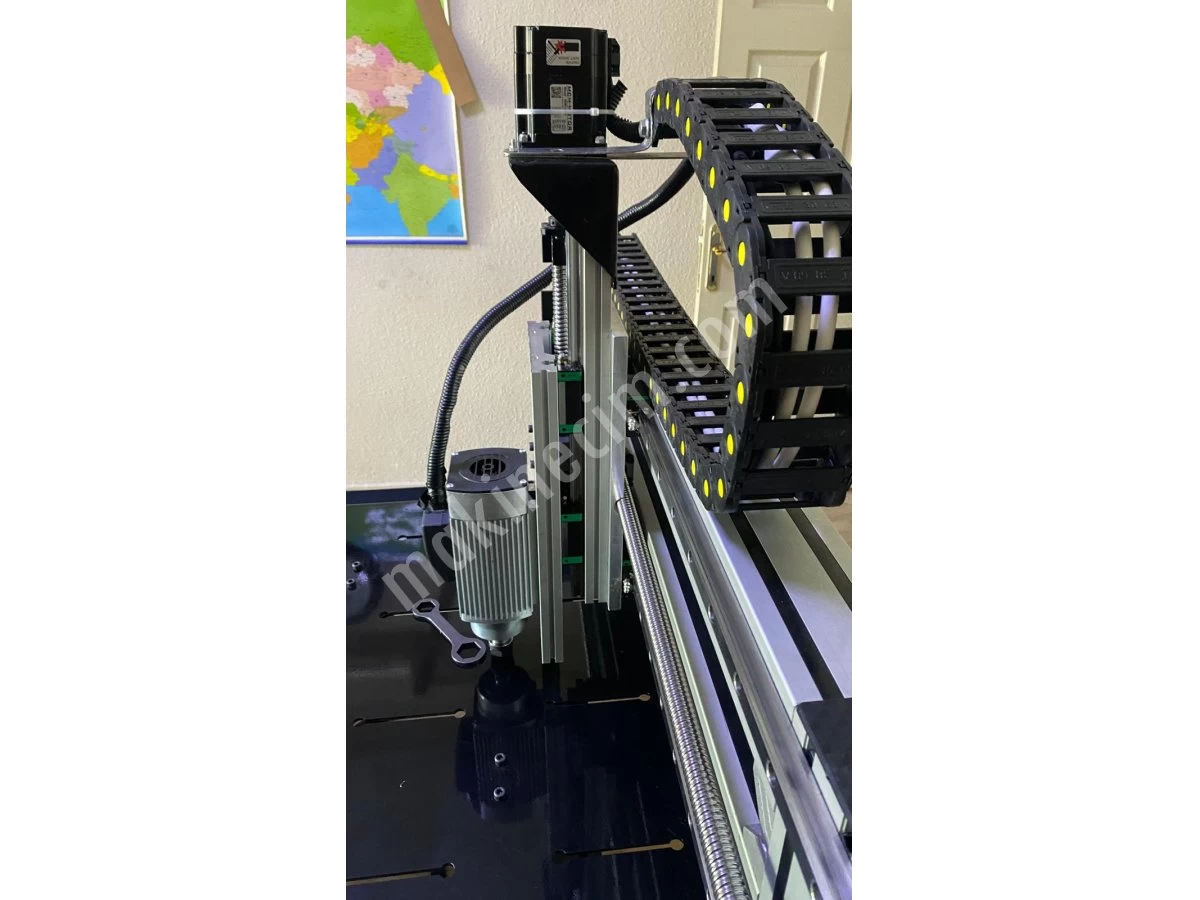

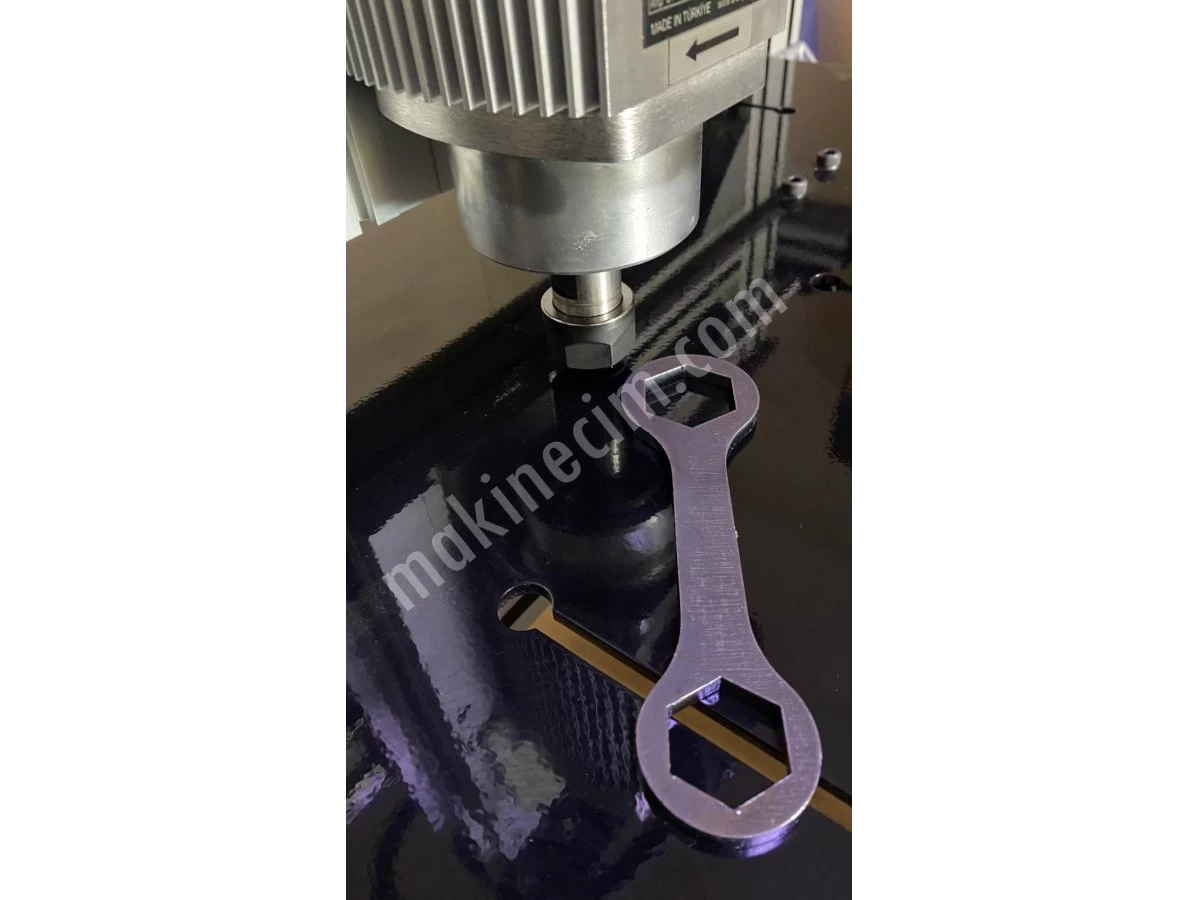

• Spindle Motor: 2.2 kW – 18,000 RPM Arel Spindle (ER20 Collet)

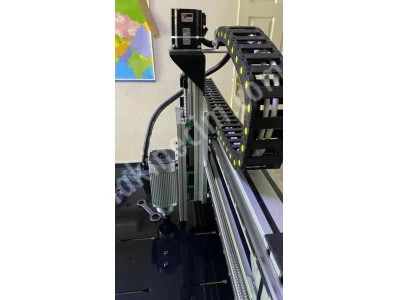

• Motors: 3 × Nema 34 Hybrid Servo Motors (4.5 Nm torque each)

• Lead Screw System: Ø20 mm – 5 mm pitch (high precision and stability)

• Effective Working Area: 850 × 1400 mm (net cutting area)

• Feed Rate: Up to 37,500 mm/min theoretical maximum (stable speed under load)

• Positioning Accuracy: ±0.01 mm (1 step = 1.8°, 5 mm lead = 200 steps → 1 step = 0.025 mm)

• Compatible Materials: Wood, MDF, acrylic, aluminum, composite panels, and more

• Power Supply: 220V AC

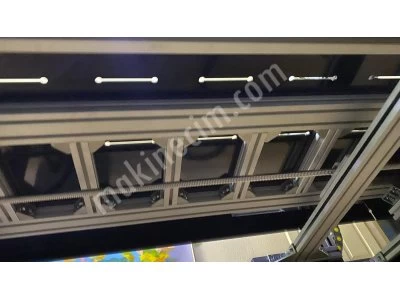

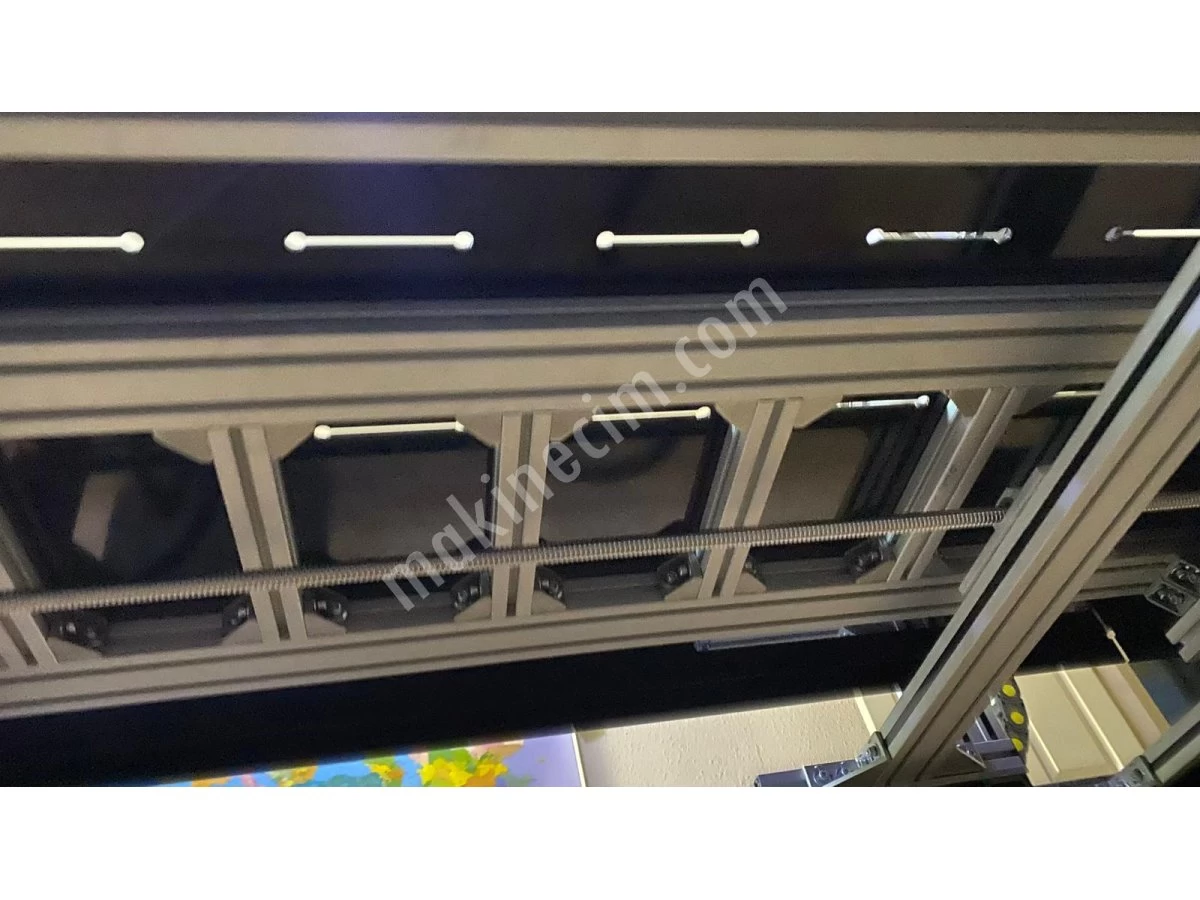

• Frame Structure: Heavy-duty aluminum sigma profiles with vibration-damped rigidity

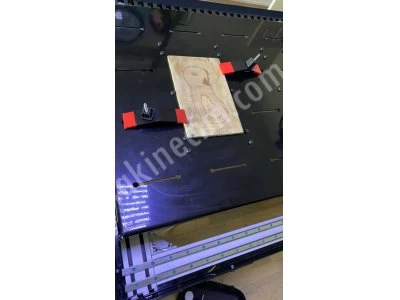

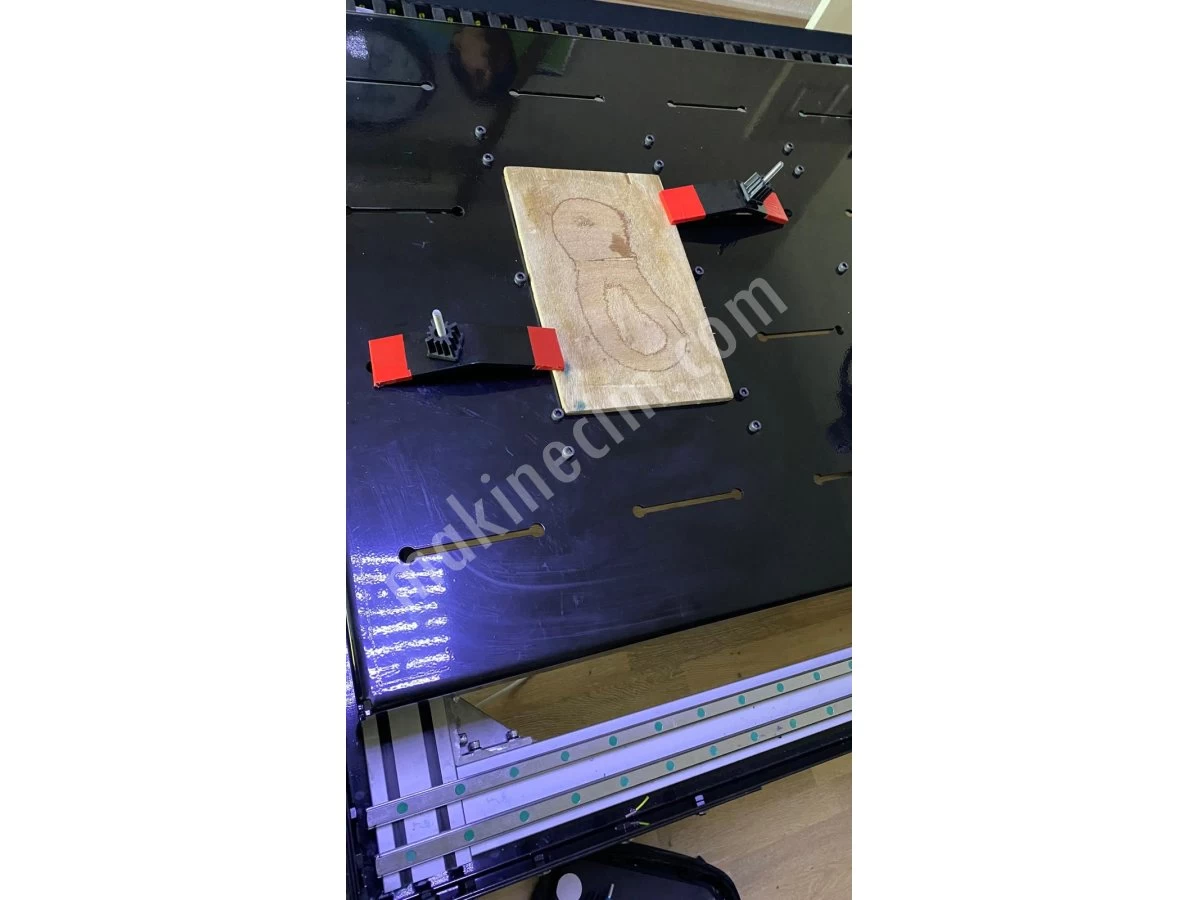

• Table: 5 mm thick precision-ground steel plate – custom design

⸻
