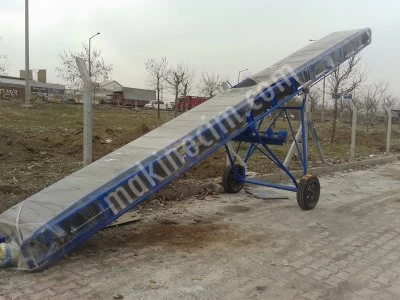

8 Meter Three-Phase Saw Toothed V-Type Chassis Mobile Base

NO LAST DAY CONVEYOR BELT WITH FIXED PRICE GUARANTEE

The chassis is made of Ø48x3mm pipe (a flexible and long-lasting chassis type resistant to corrosion).

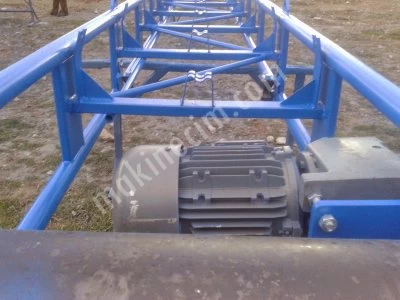

• Gearmotor: 1.5 kW, 63 rpm, THREE-PHASE, 380 V, Öztekfen brand
• Electrical wiring harness is used in the hex cable

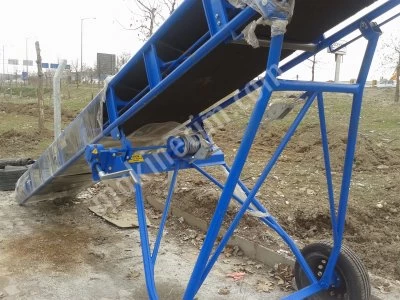

• V-type chassis will be made with a double-group pulley system
• 600x8 mm ESTERE TYPE Kale brand rubber will be used
• DYO brand primer and first-class paint are used on the primer
• 1209 k+h type bearing and bearing system accordingly

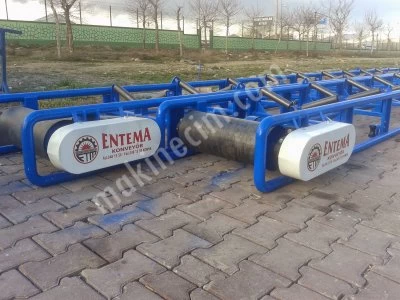

• Ø40 transmission from 219x4mm pipe and 8mm flanged drive and tension drum system

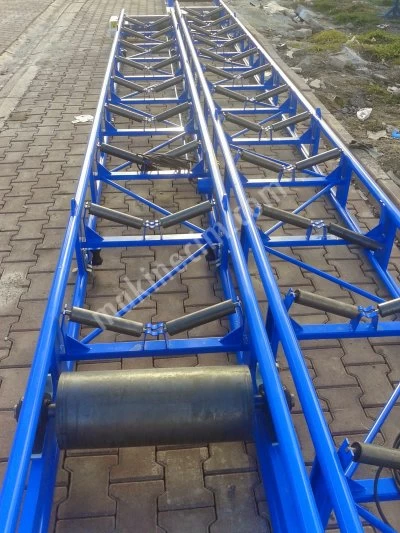

• Roll station with 50x30x3mm profile and sheet-supported welding construction
• Rubber anti-deflection direction roller system
• WITH ENTEMA CONVEYOR ASSURANCE

PRE-SALE AT WHOLESALE PRICE

PRICES ARE CASH PRICE

SHIPPING IS AT THE BUYER'S OWN RISK.

Overload transportation is provided by contracted navigators. Shipping across Turkey costs between 150-300 TL.
