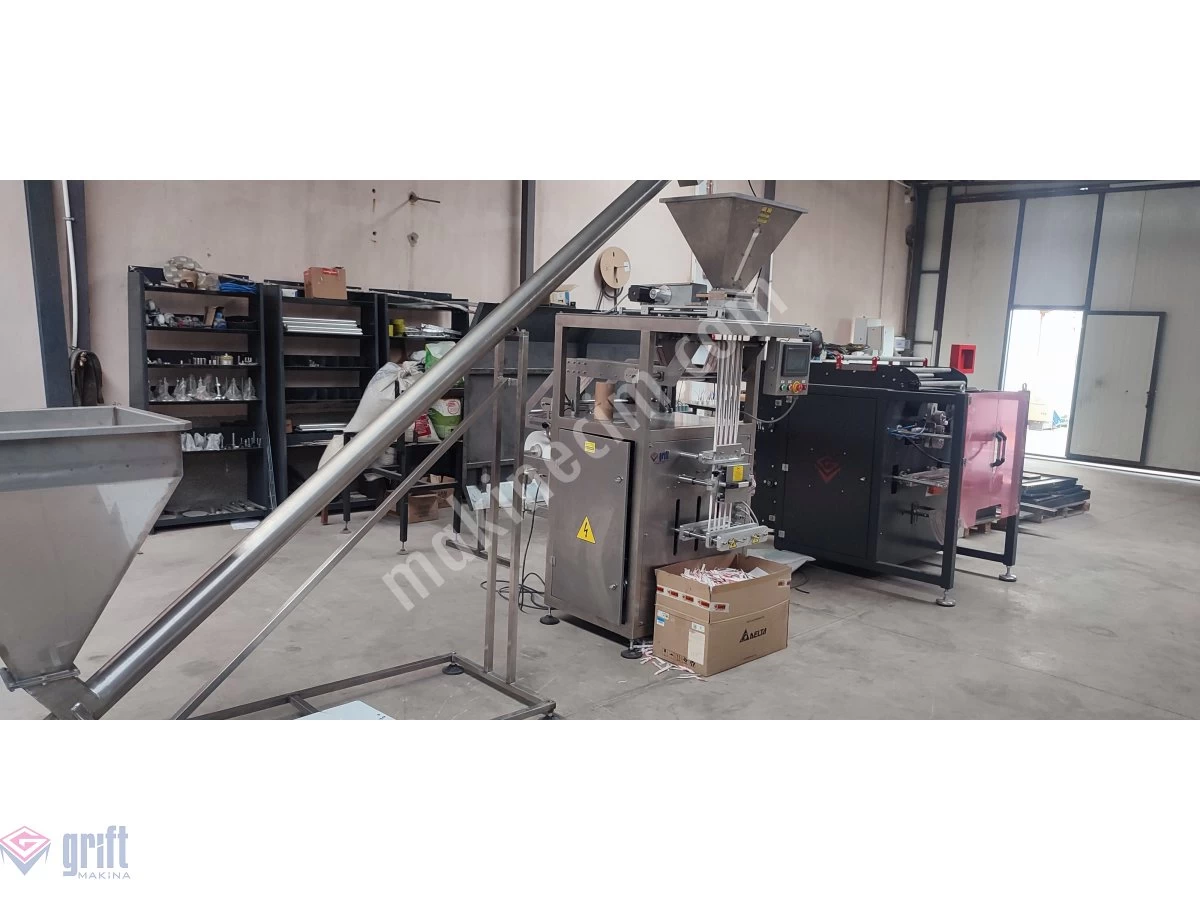

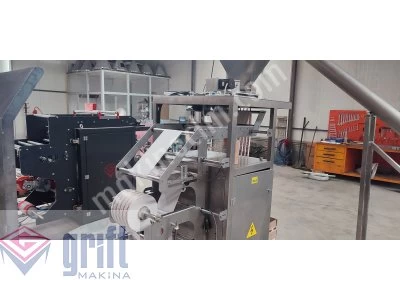

5 Nozzles Stıck Machıne

Materials like cocoa, flour, powdered sugar, coffe, strach etc. are usable ın thıs machine.

Optional: A product feeding output band will be given with a helix.

Filling; Weight adjustment with servo motor is adjusted by controlling the revolution of the worm screw.

* Chassis section is coated with static powder paint; the parts in contact with the product are made of 304-grade chrome.

*"7'' touch PLC DELTA screen, DELTA servo motor for the screw motor, 20 kg product hopper.

1. The machine is manufactured from stainless materials. (There is painted material behind the front and top panels for reinforcement.)

2. It is PLC-controlled with a 7” touchscreen display.

3. The machine has a volumetric filling unit. Filling range: 1 - 6 grams.

4. The product width to be packaged is 17 mm (standard).

5. The machine is mechanical and pneumatic.

6. Machine capacity: maximum of 250 units per minute.

7. It can operate with both photo-sensor and non-photo-sensor packaging.

8. Automation system brands: Delta + Omron.

9. Machine dimensions: width 90 cm, depth 170 cm, height 220 cm.

10. Machine weight: 470 kg.

SPECIFICATIONS

Operating Pressure

6-8 Bar

Power Consumption

3000 Watt

Packaging Quantity MAX

250 PIECES

Weight

350 Kg

Operating Voltage

380 volt

Height

220 cm

Width

100 x 160 cm

Packaging Tolerance

%1 gr

MACHINE EQUIPMENTS

Helix

Product Conveyor Band

Powder Filling Unit

OPTIONAL FEATURES

Guillotine

Date and Barcode Printing

Product Holding Tray

Die-cutting

PACKAGE TYPES

Stick Package
