5-Floor Mining Sizing Screen

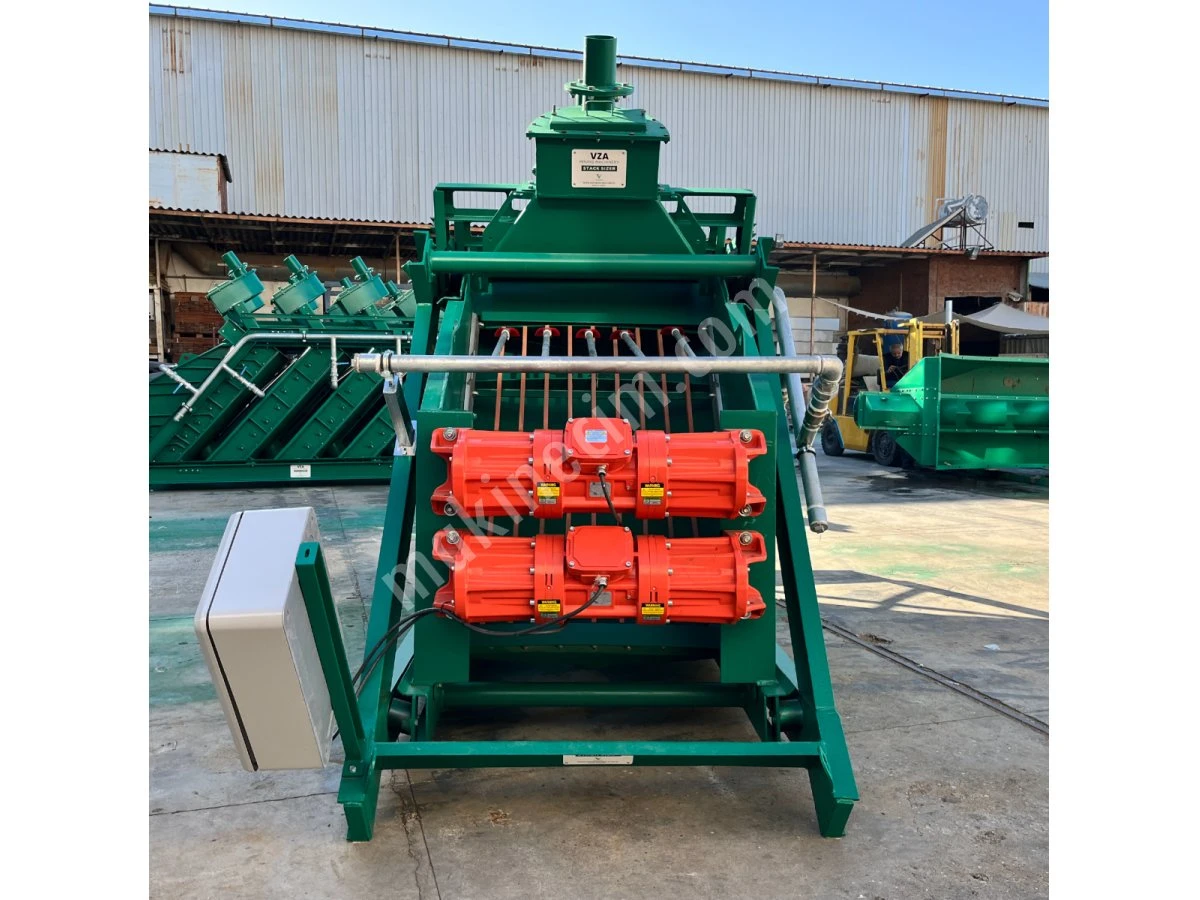

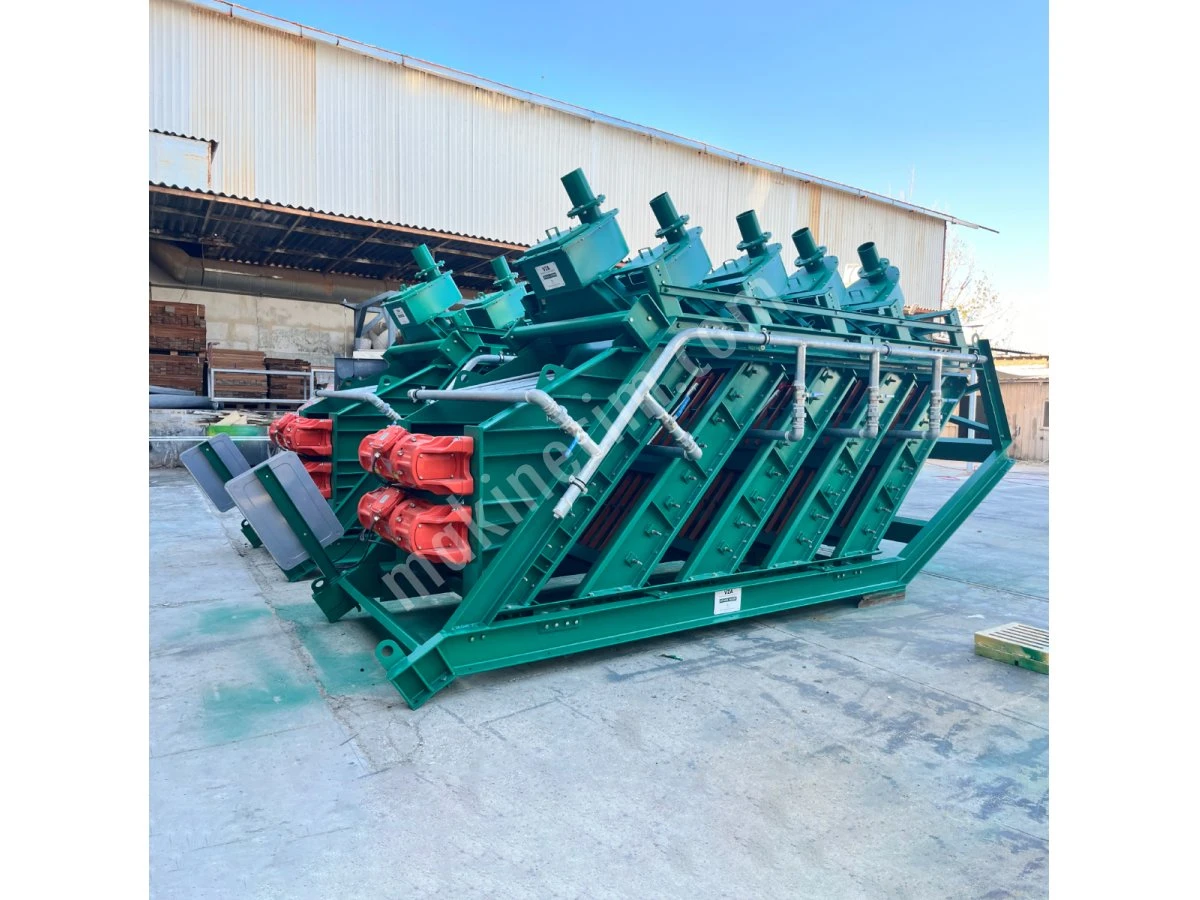

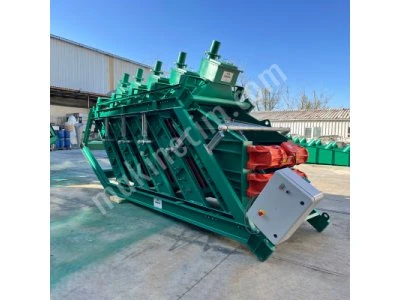

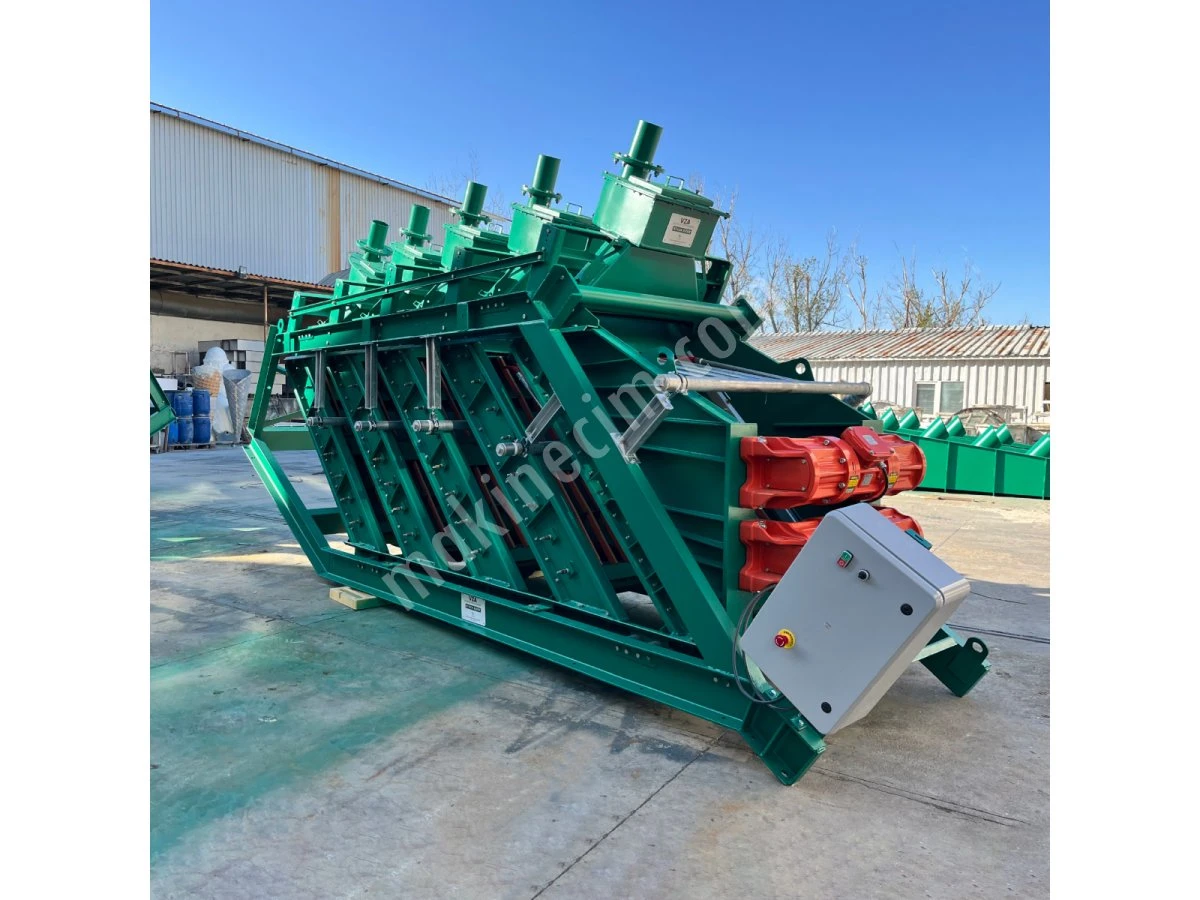

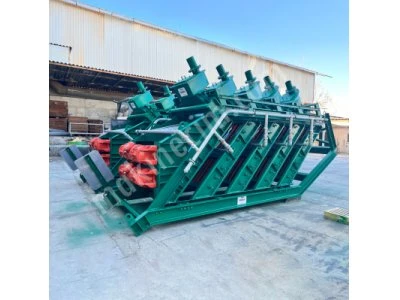

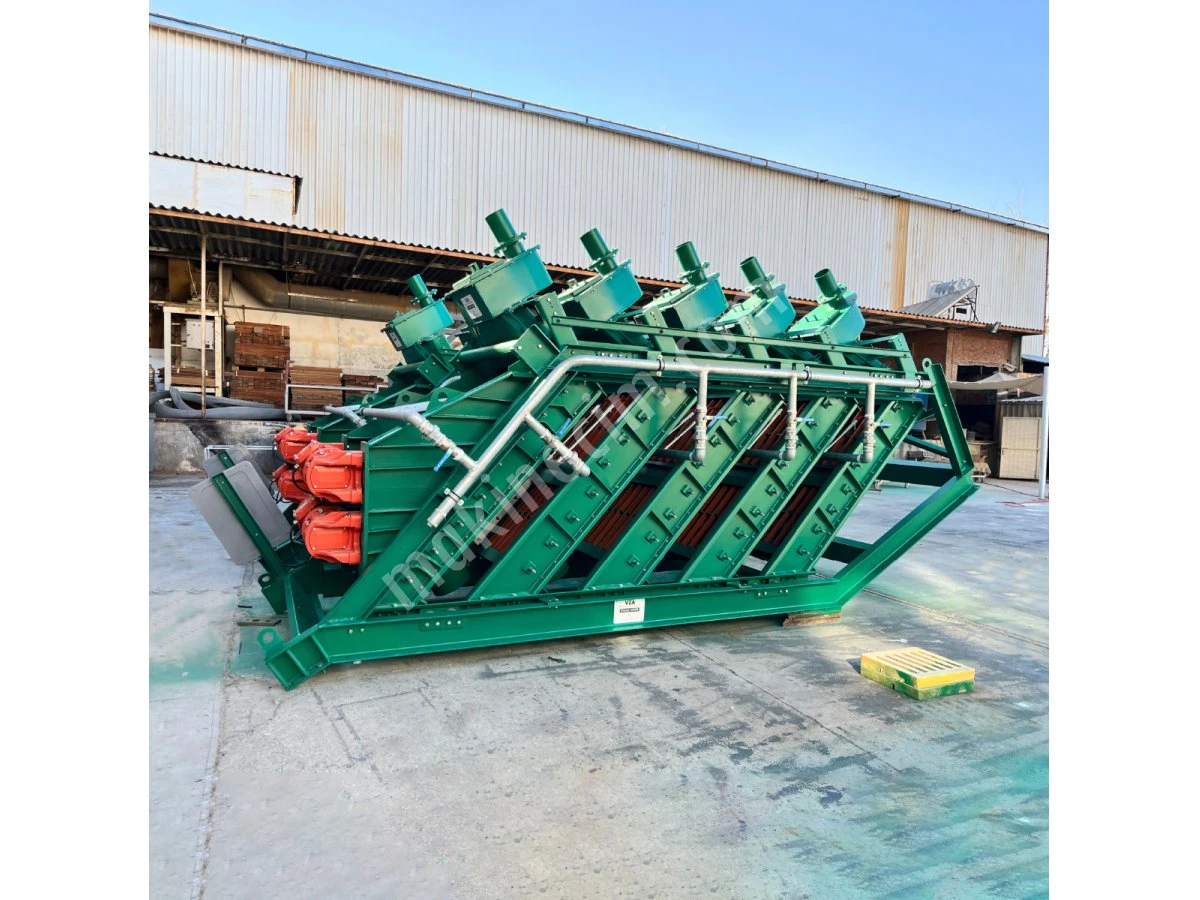

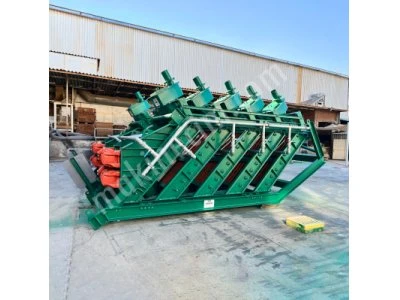

5-DECK ORE SIZING SCREEN VZA-F5/M2

TECHNICAL SPECIFICATIONS

1.) STEEL MAIN CONSTRUCTION FEATURES

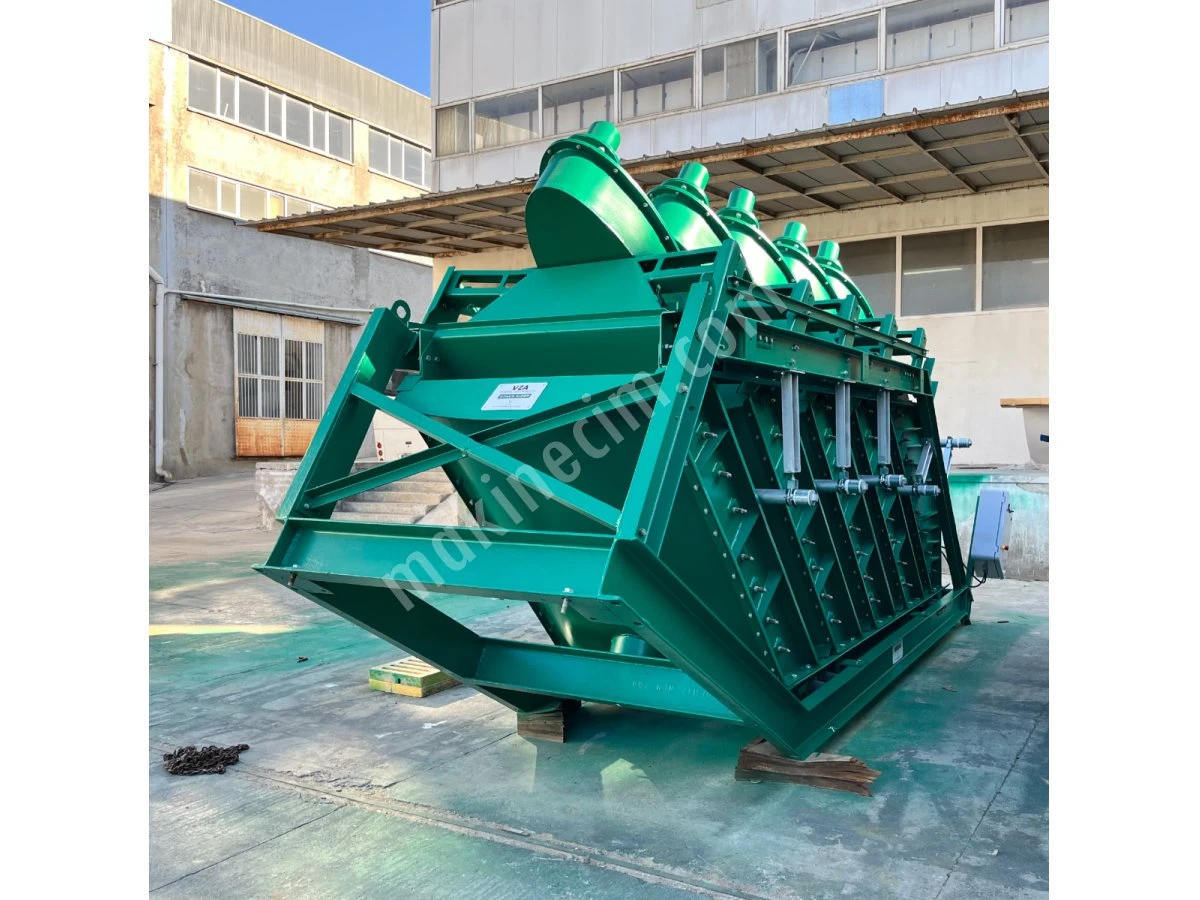

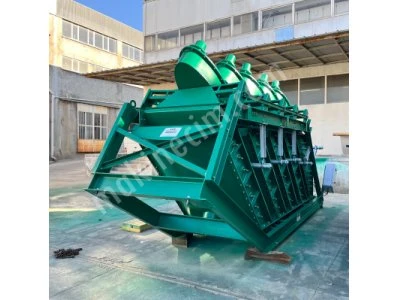

1.1 Steel construction main body

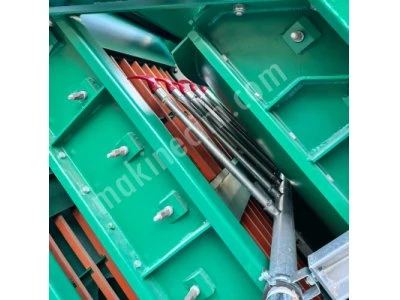

1.2 Under-screen and over-screen collection hopper

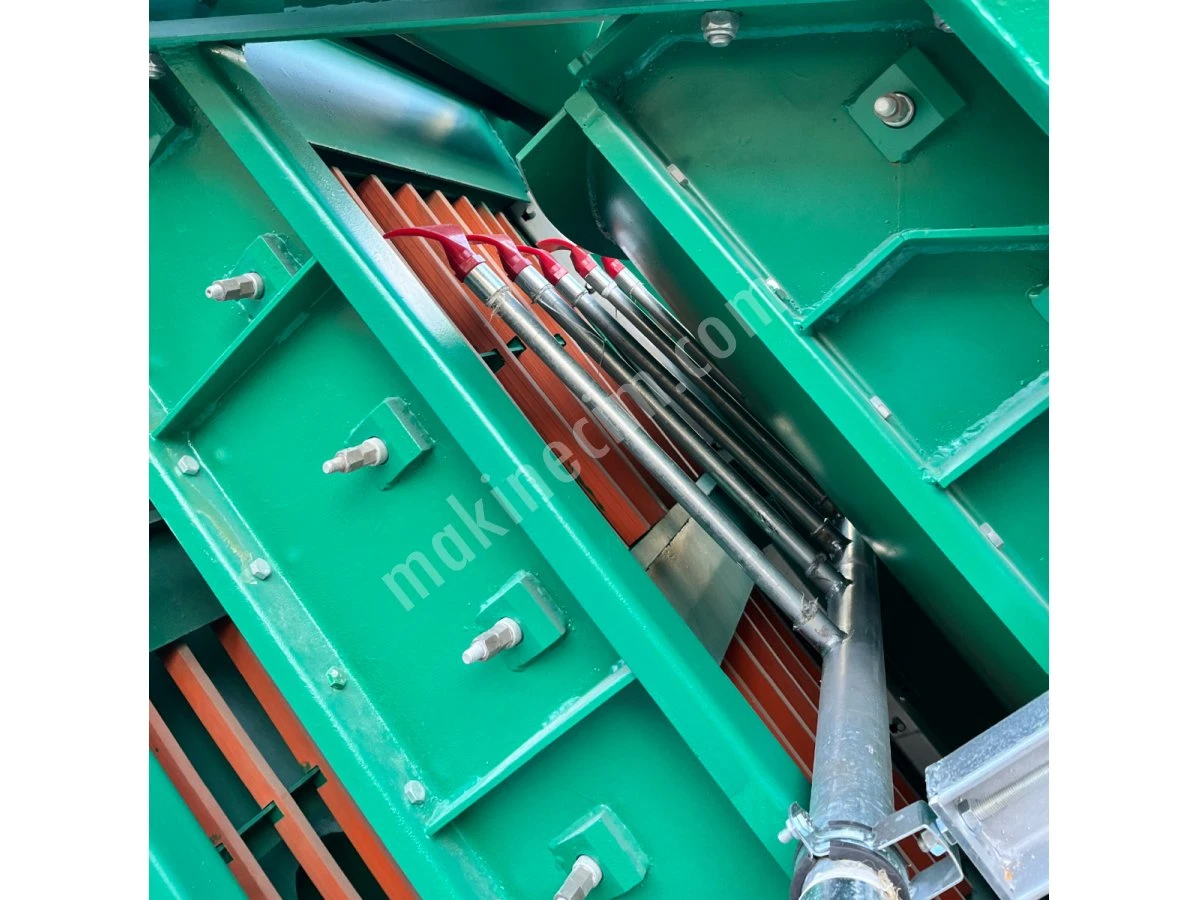

1.3 Over-screen water spray pipes and spray nozzles

1.4 Over-screen ore discharge pipe

1.5 Under-screen waste discharge pipe

1.6 Polyurethane screen panel housing

1.7 Weight: 4,675 kg

1.8 Dimensions: 460 x 525 x 150 cm

2.) DISTRIBUTION HOPPER

2.1 Manufactured from steel construction, featuring a single inlet and 3 outlets. (Note: "53 çıkışlıdır" in the source text is a typo for "3 çıkışlıdır" or 3-deck system context, but translated literally as 3 outlets / matching the system context).

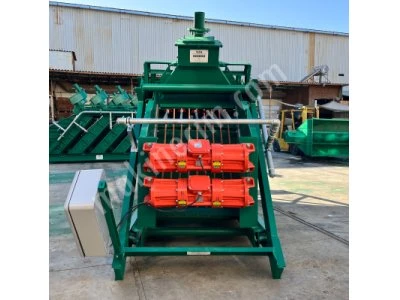

3.) MOTOR SPECIFICATIONS

3.1 Quantity: 2 Units

3.2 Voltage: 380 / 400 Volt, 50 Hz

3.3 Speed: MVE 3500/15 RPM - SV-75 D0

3.4 Centrifugal Force (Kg): 3500

3.5 Weight: 180 kg

3.6 Input Power (kW): 2.2

3.7 Standard Nominal Current: 4.3

3.8 Terminal Connection: Y

3.9 Ampere: 6.5

3.10 Cable Gland (Metric): 3/3 NPT 110C

4.) POLYURETHANE SCREEN PANELS

2 polyurethane screen panels are used for each deck.

4.1 1 Unit Polyurethane Screen Panel: 70 x 104 cm / $0.73\,\text{m}^2$

$0.73\,\text{m}^2 \times 2\text{ Units} = 1.46\,\text{m}^2 / 1\text{ Deck}$

$1.46\,\text{m}^2 \times 5\text{ Decks} = 7.3\,\text{m}^2$ (TOTAL SCREENING SURFACE)

4.2 Screen panel aperture sizes are specified in the attached table. You can make your selection according to the characteristics of your ore.

The product consists of the steel main body only.

Polyurethane Screen Panels, Vibration Motor, and Electrical Control Panel are not included in the product.

Please contact us for quotes, quantities, and inquiries.
