5-Axis Machining Center Hermle C 42 U

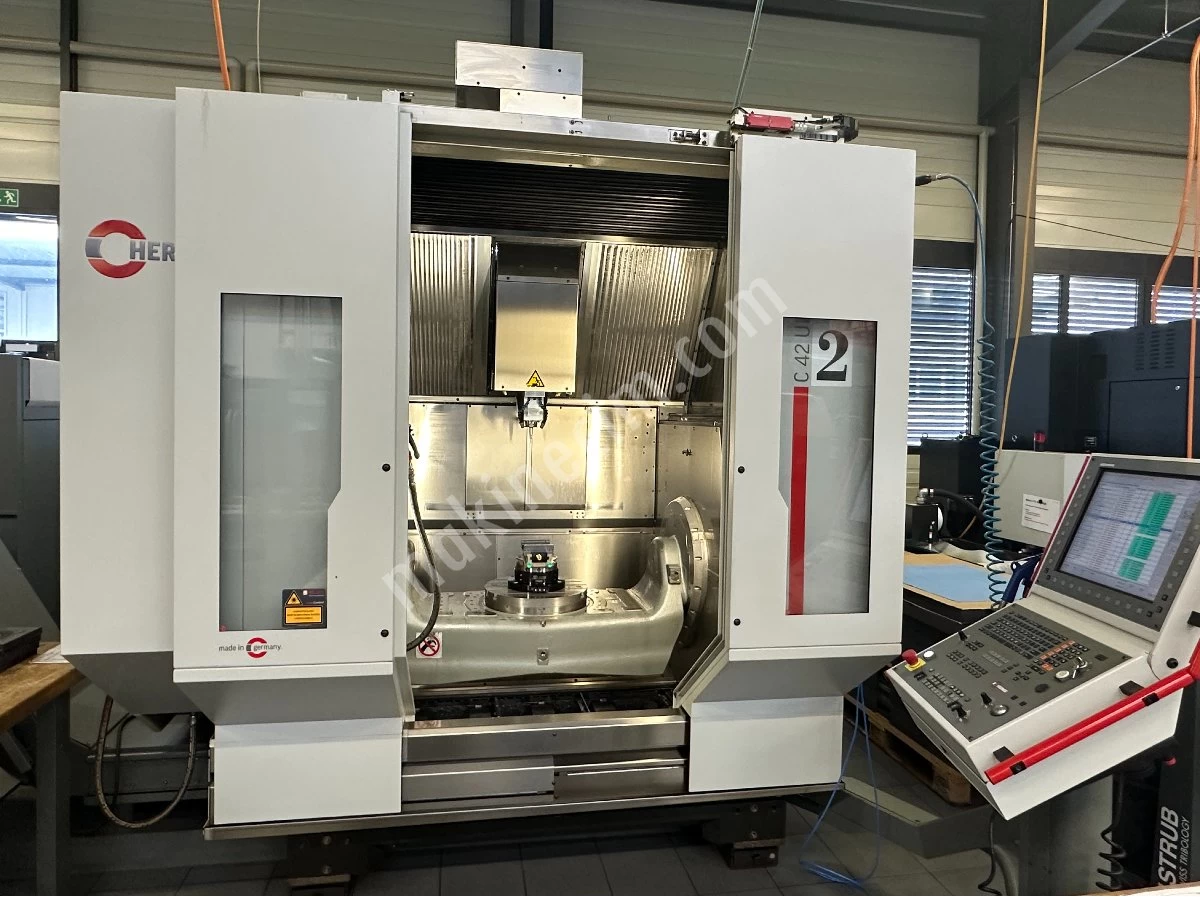

HERMLE C 42 U

HERMLE C 42 U is a 5-axis machining center engineered for precision, high accuracy, and reliability.

Capacity:

• Rotary Table Ø440 mm, 5 T-slots 14H7, table load 450 kg
• Travels: X800 × Y800 × Z550 mm, A ±130°
• Table Speed: 30 t/min

Key Specs:

• Spindle: HSK-A63 0–18,000 rpm, 42 kW, 148 Nm
• Rapid Traverses: 45/45/40 m/min
• Power Supply: 3x400 V 50 Hz, air 6 bar
• Total Power: 37 kVA
• Weight: ~13,500 kg
• Footprint: 5000×2450×3200 mm

Equipment:

• 42-position tool changer
• Additional 160-place magazine
• Coolant through spindle 80 bar
• RS232/Ethernet/USB
• Switch-cabinet air conditioner

Ideal for tight tolerances in automotive, aerospace, medical, watchmaking, and toolmaking.
