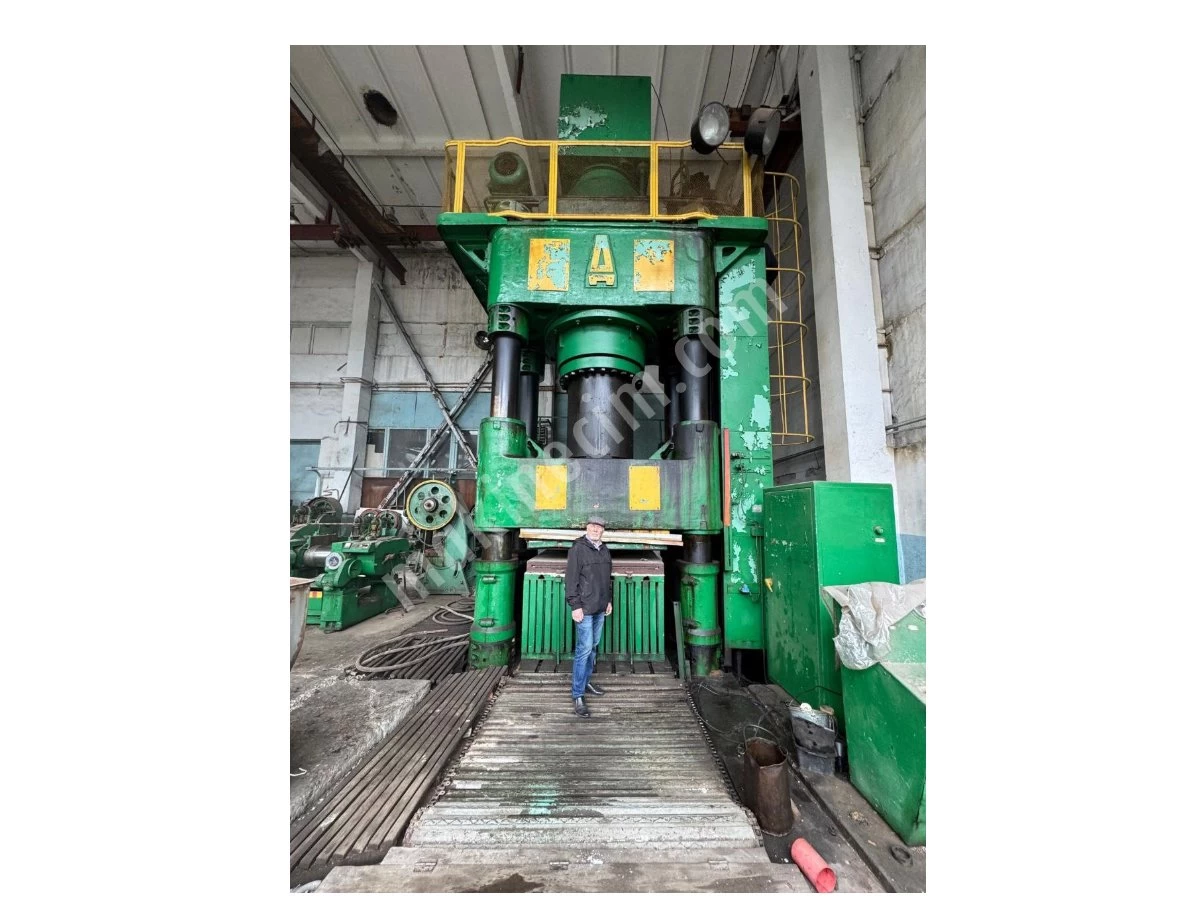

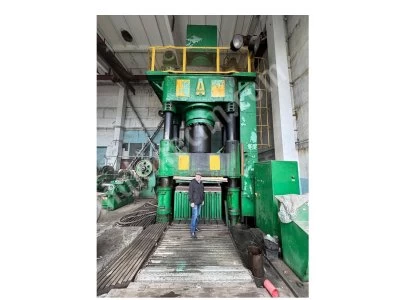

2000 Tons Press Hydraulic (Isothermal) Russian Mod.D2243

price on request

2000 tons press hydraulic (isothermal)

Nominal force : 2000 tons,
Traverse stroke : 1400 mm,
Shut height of stamp distance : 2400 mm,
Moving table size : 2000 x 1650 mm,
Moving table stroke : 1500 mm,
Table height above floor : 0 mm,
Crsc Hivkewqpv Ned Ted
Ejector force:
– Working stroke (up) : 315 tons,
– Return stroke (down) : 160 tons,
Side ejector force : 20 tons,
Press dimensions:
– Overall height : 11750 mm,
– Right to left : 7000 mm,
– Front to back : 5750 mm,
Press height above floor : 7900 mm,
Press weight : 144,5 tons.

The press has an extendable table. The press is connected

-Moulding of thermosetting materials in closed, open and injection moulds with complex cycles: heating and cooling, pressure build-up and release, holding under load and ejection of the finished product;

-Isothermal stamping of heated workpieces with maintaining a constant temperature of the die tooling and workpiece;

-Forming of powder materials, manufacturing of large-sized products from plastic masses and composite in closed heated moulds.

-Operations of extrusion of aluminium and its alloys, thermoplastic materials, etc.;

-Sheet stamping and sheet forming processes;

This press was used for forming large-sized titanium products.
