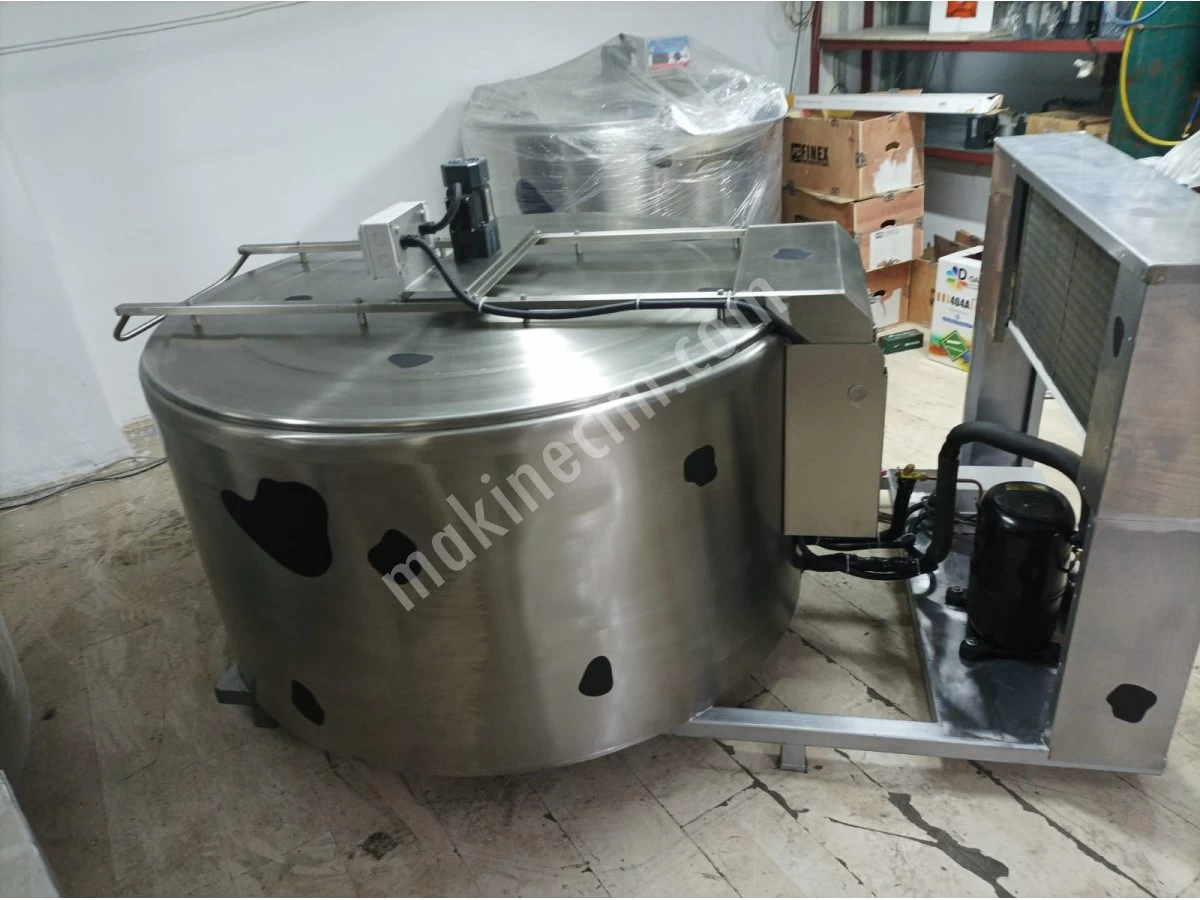

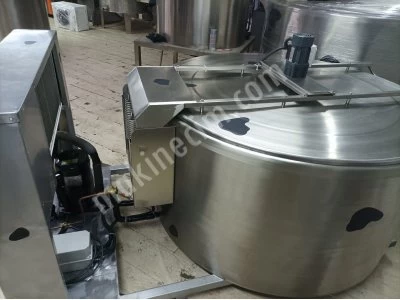

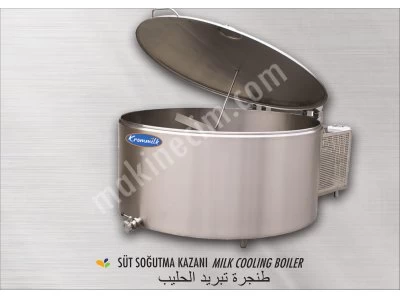

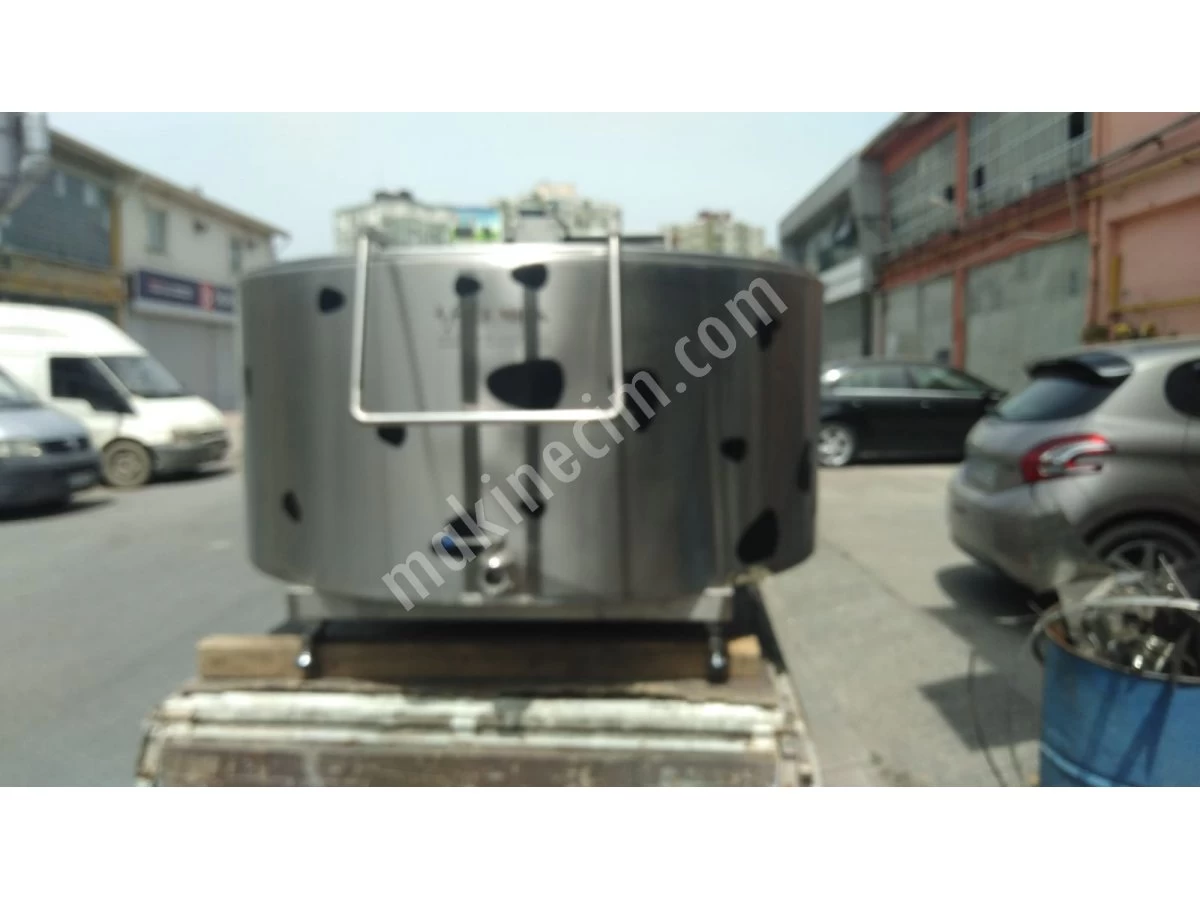

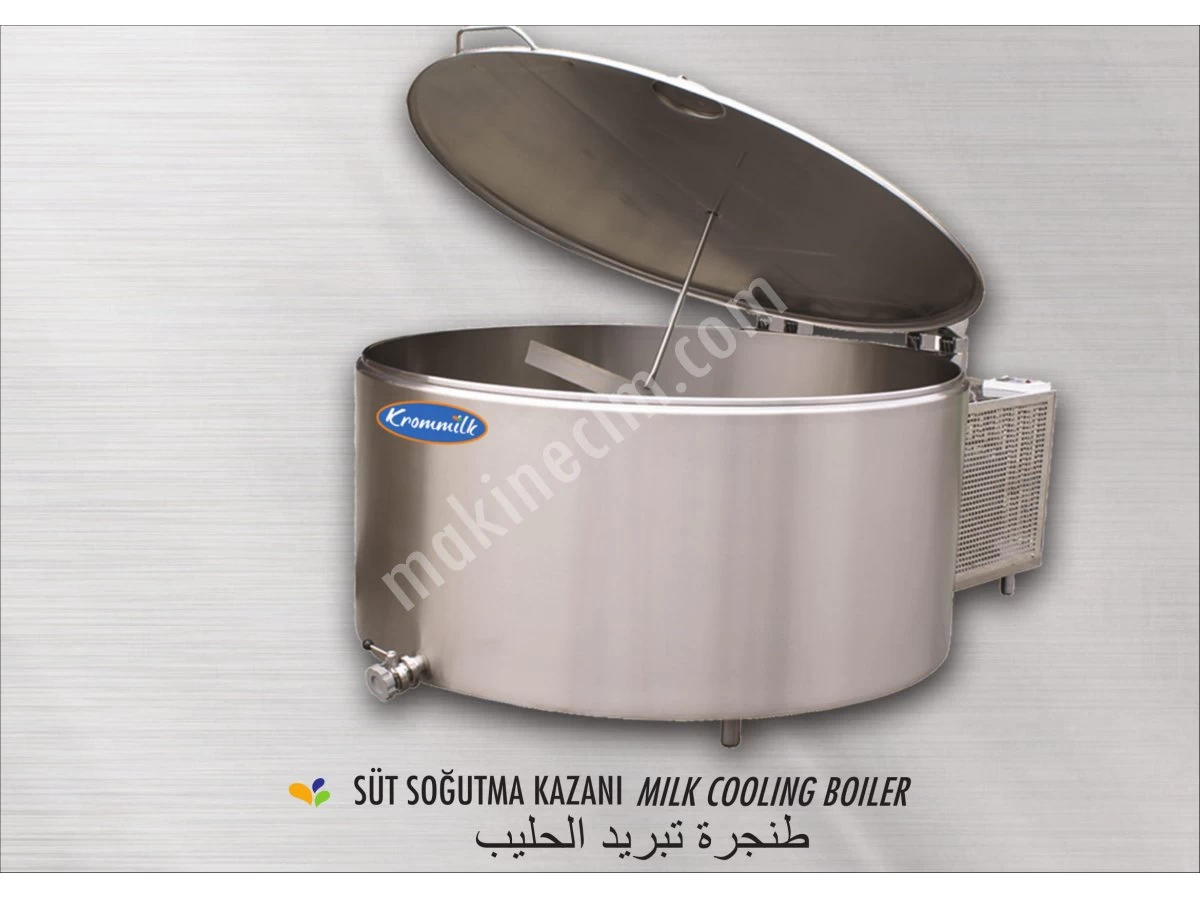

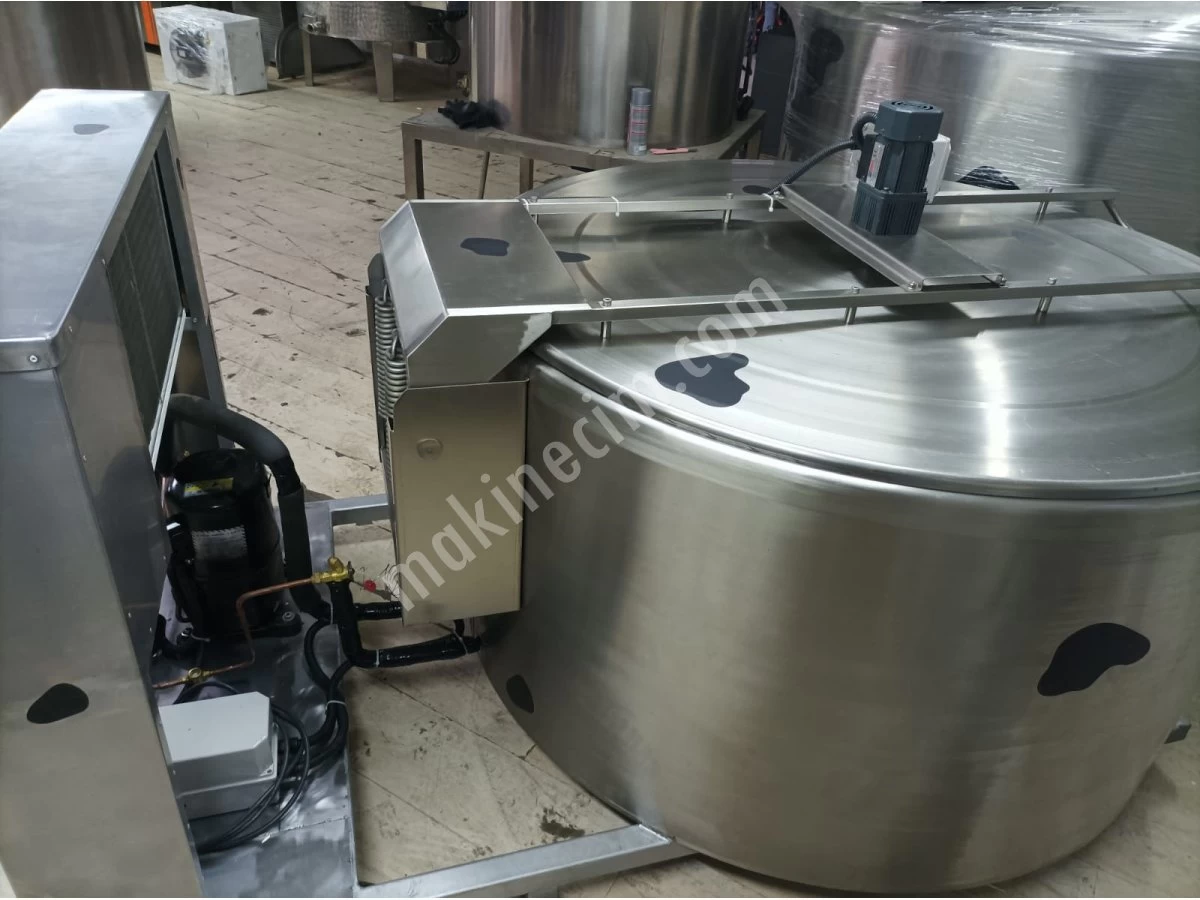

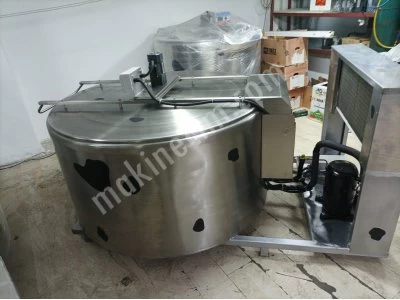

1500 Lt Milk Cooling Tank Vertical Type

Capacity

There are 6 installment options for the credit card with no maturity difference from the banks we have contracted.

Our products are guaranteed for 2 years

there is a 10-year spare parts warranty.

QUALITY IS NEVER A COINCIDENCE.

WITH THE PRINCIPLE OF SINCE 2005, WE HAVE REACHED MANY POINTS IN TURKEY AND ABROAD BY ALWAYS INVESTING IN MACHINERY EQUIPMENT BY EXCEEDING OUR TARGETS IN THE MARKET.

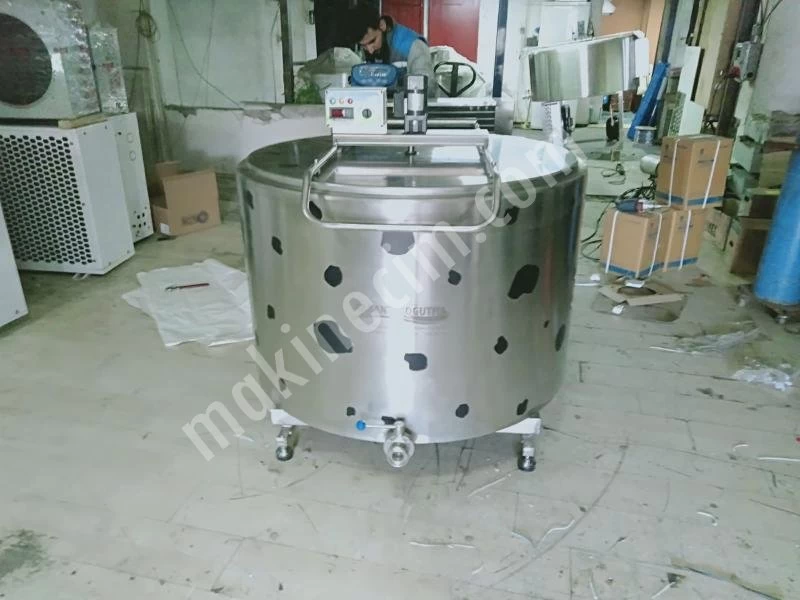

Construction

· Made of AISI 304 L quality stainless steel.

·         1.the wall base is 2 mm and there is a 0.8 mm Ep type rollbond heat exchanger plate coupled to the wall.

·         1.the wall body is 1.5 mm.

* The insulated wall is made of 1 mm AISI 304 L quality stainless steel

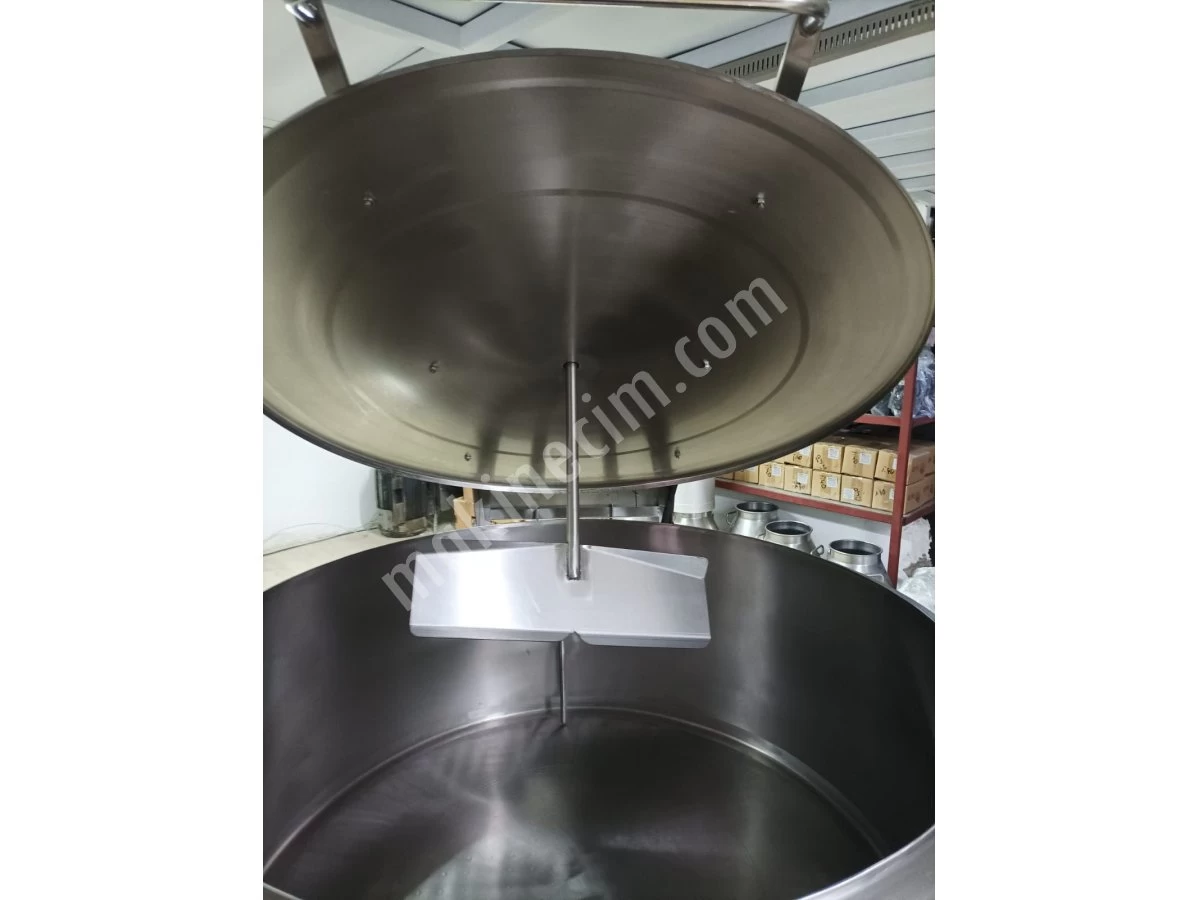

· there is 1 25 W 21 rpm reducer and a stainless steel mixer wing connected to it. The mixer wing is designed in such a way that it does not disturb the structure of the milk.

· There is a butterfly valve with a product output DN 40 or 50 female record.

* The insulation December is 40 mm thick and it is insulated with HCFC-free water-based high-density polyurethane foam material.

* There is a special manual ruler for each tank. (it has a sensitivity rate of 3-4%.)

· It is designed to keep zero liquid inside.

* The tank body is mounted on a monolithic chassis.

* Welded zones 1.TIG welding is class 1 Argon.the grade is with smooth polishing.

* The refrigerant evaporator (rollbond) was subjected to a test pressure of 40 bar.

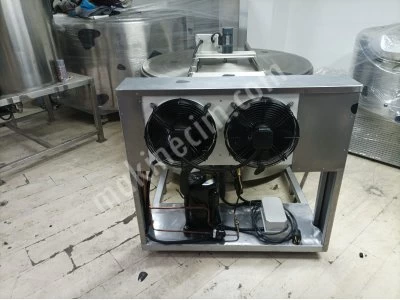

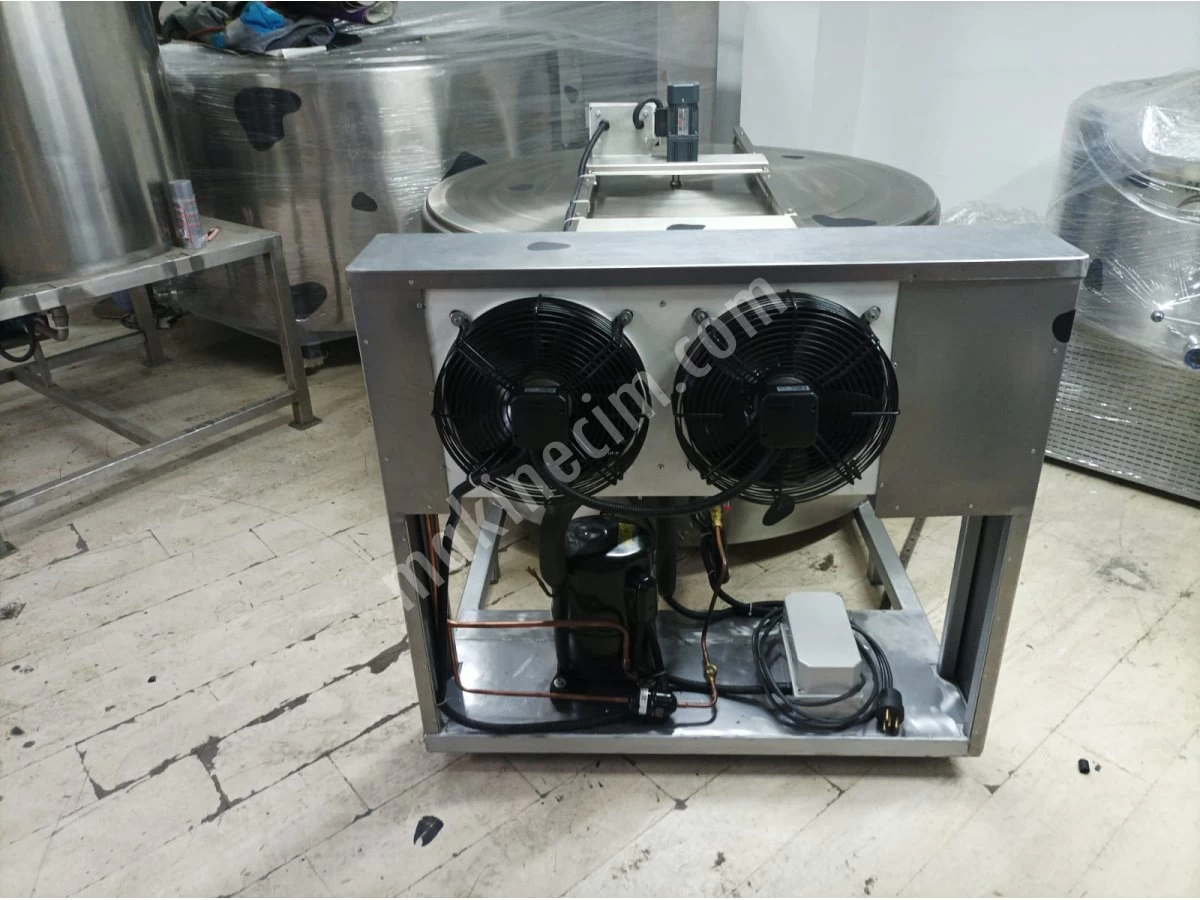

Cooling Group

* Minimum amount of gas charge

· A 404 gas cooled

* Possibility of cooling without icing, even with a low amount of milk

· Each milking (38 °C – 43 °C) provides the possibility of cooling from 35 °C to 4 °C at ambient temperature for less than 3 hours. In addition, you can see the class entered by each tank by examining the Test Conformity Report owned by our GARANTI COOLING company.

· Each refrigerant belongs to the compressor (Dryer, sight glass, expansion valve liquid holder and valves).

* Refrigeration compressors are mounted on the monolithic chassis on the tank.

Electronic Control Panel

* The electronic control system is mounted in a special panel and all operations are performed via the electronic control card belonging to GARANTI COOLING company.

· Control operation of the tank on the control panel, the milk temperature is controlled.

* Phase protection relay is available.

* Thanks to the special software automatic mixing program, the mixer operating December can be adjusted after the milk's coldness reaches the desired sel value. (such as working for 3 minutes and stopping for 10 minutes)

Option (Digital libra )

Digital Level Display

· It has the possibility of making measurements with a margin of error of 0- ‰ 2.

* The amount of milk in the tank can be monitored from the control panel.

· It can show the amount of milk in the tank in mm, kg and lt.
