Fourstar 2132+F5 Double Column

ÇOK AZ VE ÖZENLE KULLANILMIŞ SIFIR AYARINDA.

TEŞVİK BELGESİ İLE DEVREDİLECEKTİR.

EKSTRALI TEZGAHTIR. AHC SİSTEMİ, 50 CM UZATMA KAFASI VE 2 EKSEN ACILI ACKAFASI VARDIR.

DETAYLI BİLGİ İÇİN ARAYABİLİRSİNİZ.

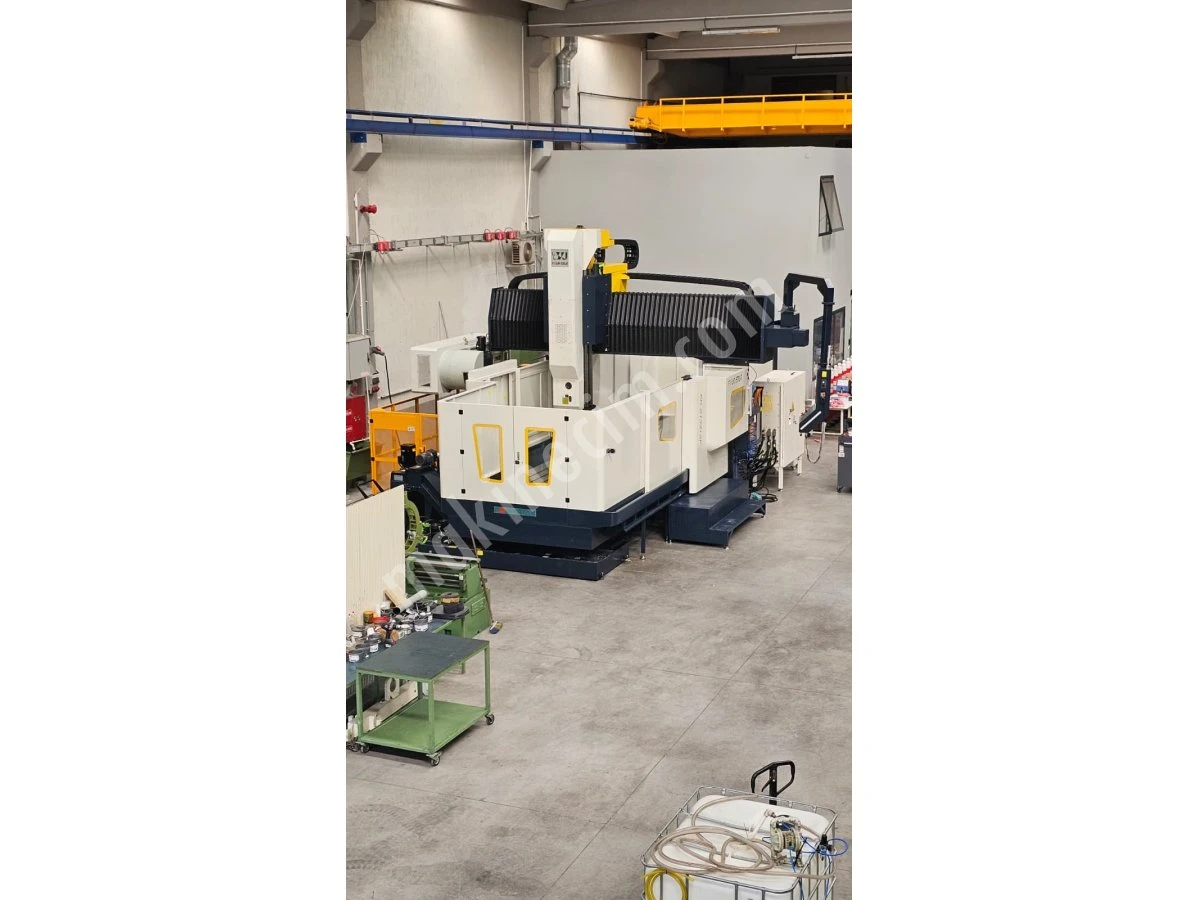

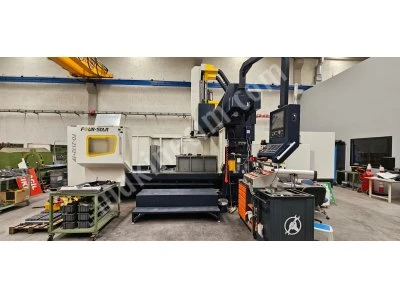

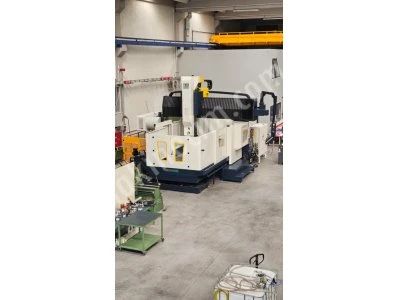

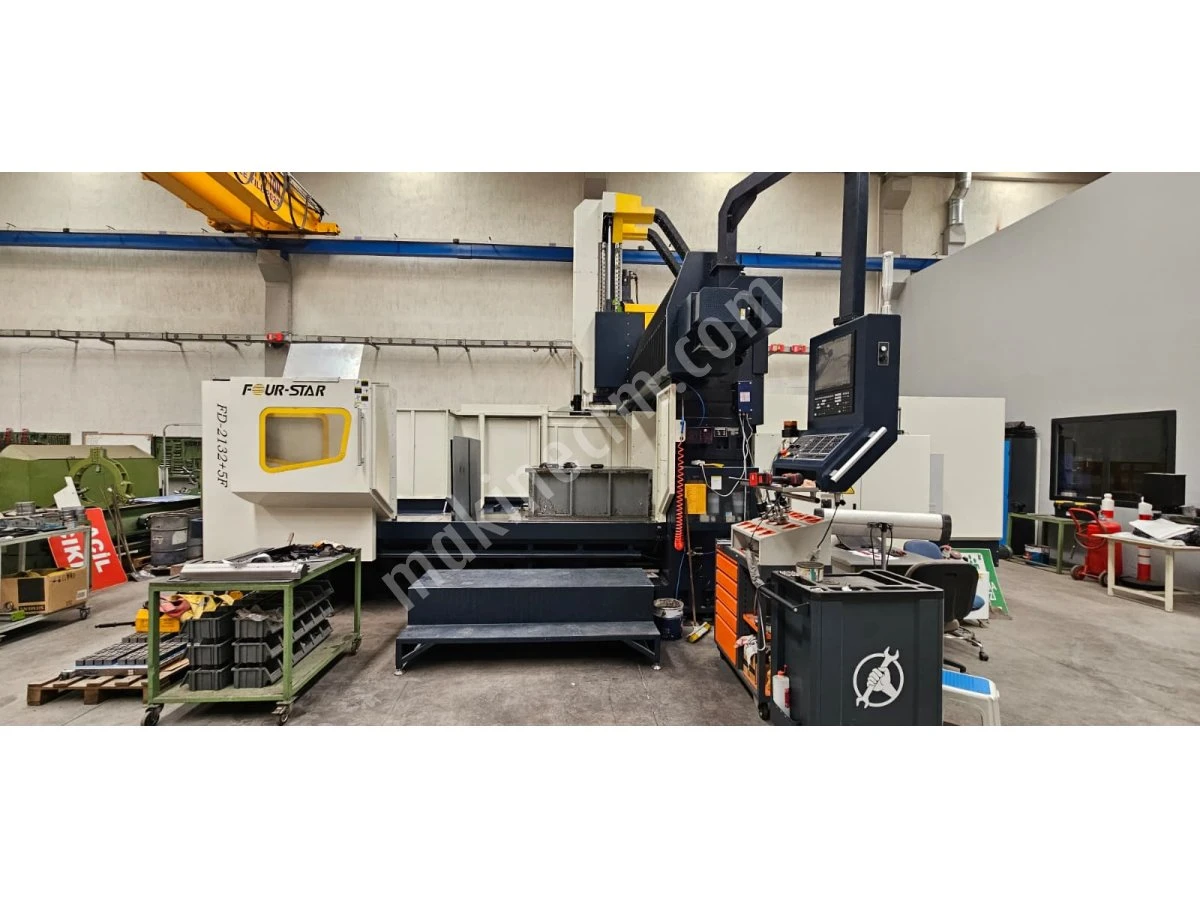

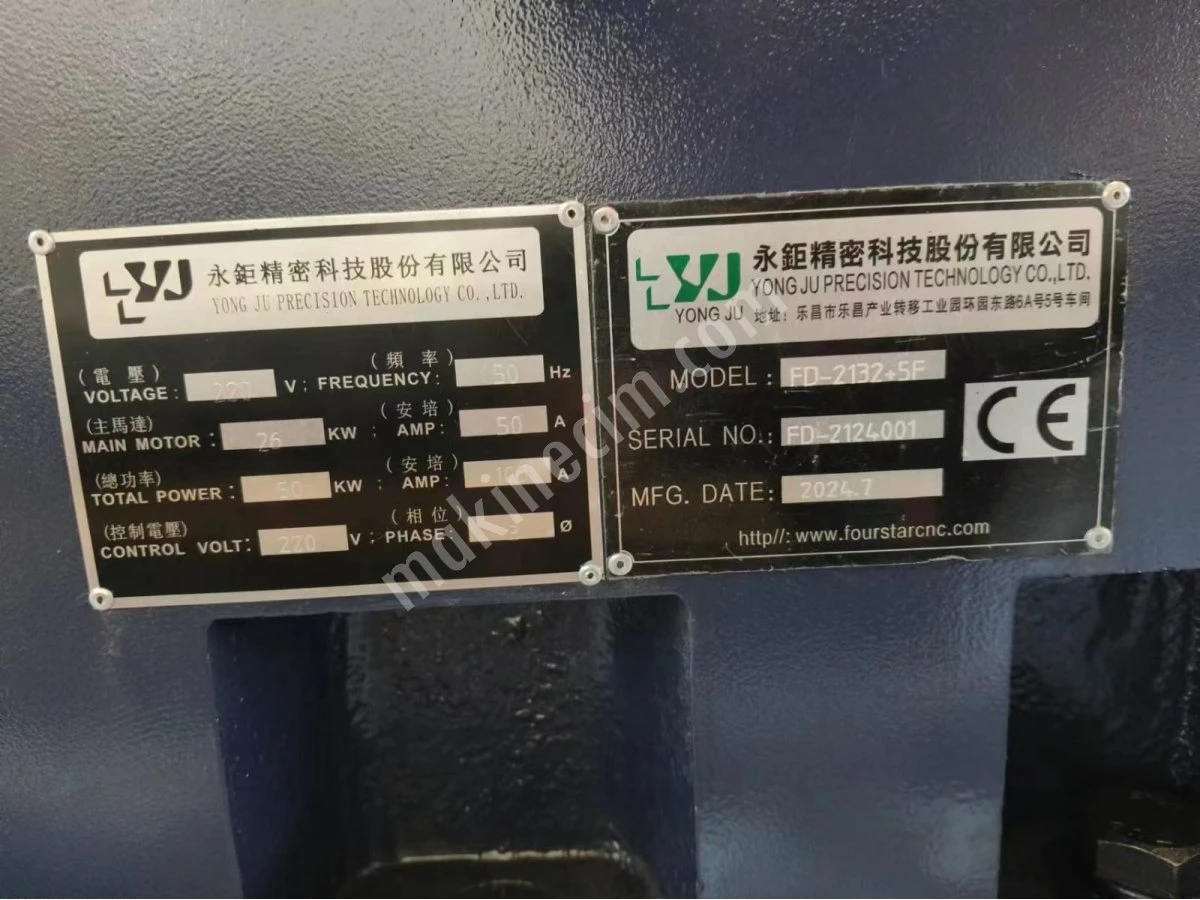

FD-2132+5F Fixed Double Column Machining Center

Specification:

X/Y /Z travel: 3200/2100+650/1000 mm

Distance between columns: max. 2150mm(without splash guard)

Table size: 3000mm×1800mm

Ram size: 450*400mm

Spindle: BBT-50, 6000rpm, 22/26kW with gearbox(1:4)

Spindle nose to table: 500-1500mm (confirmed by drawing)

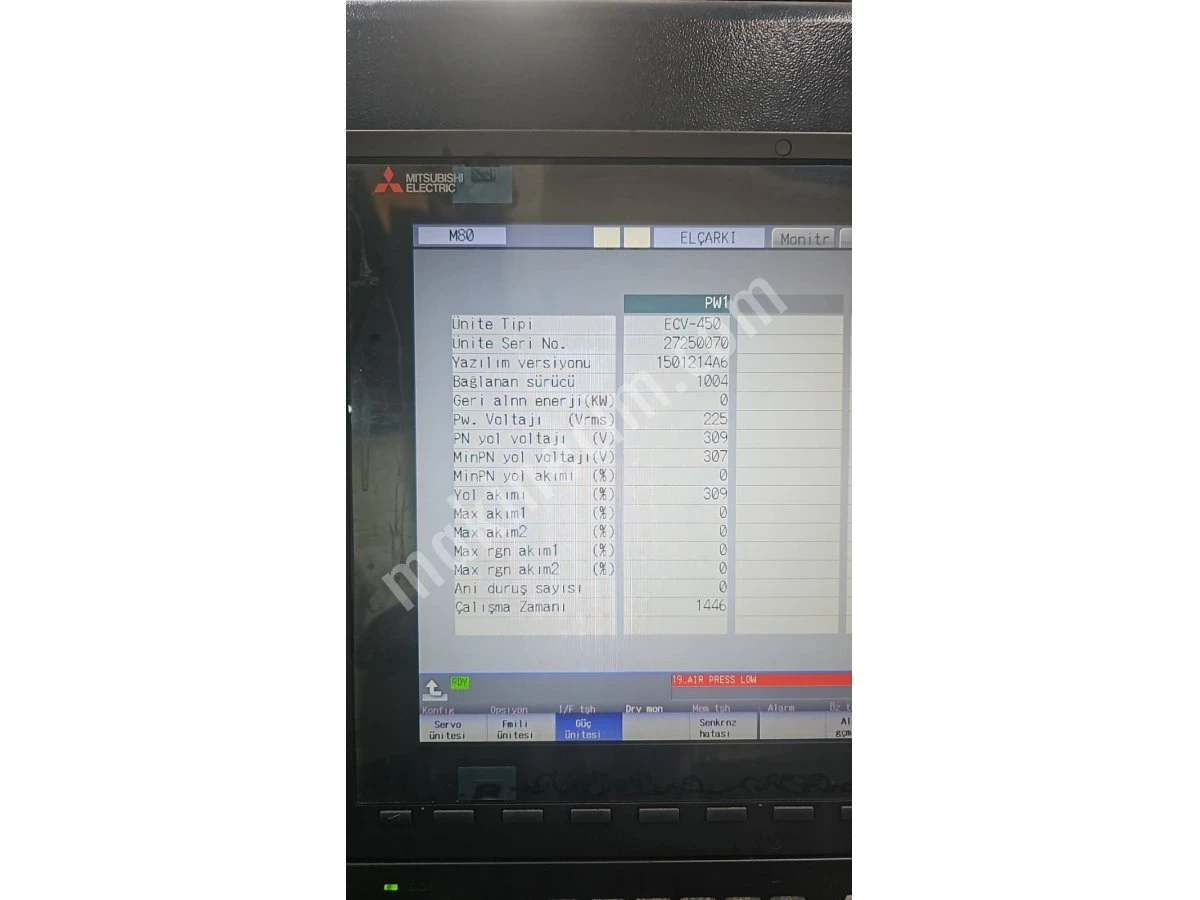

Controller: Mitsubish M80A+15"LCD

ATC Capcity: 32 tools

Diameter / tool weight: 350mm/25kg

Maximum table load: 15 ton

Machine size L/W/H (approx): 8.4/4.85/4.1m

Machine weight (approx): 32 ton

Standard accessories:

1. Spindle oil cooler

2. Spindle air blast

3. Cutting coolant system

4. Auto lubrication system

5. Program end alarm light

6. Rigid tapping

7. Electrical cabinet air condition

8. USB/RJ 45/Ethernet interface

9. N2 counter balancing system

10. Air/water cleaning equipment

11. Dual screw type chip remover

12. Steel-belt type chip conveyor with cart

13. Operator's manual

14. Working lamp

15. Tools kit

16. ATC auto door

17. Foot switch for tool released

18. X/Y /Z axis with KSK ball screw

19. X /Y /Z axis FZS roller linear guideway

20. Semi enclosure splash guard (no top cover)

21. X axis telescopic cover+Y axis Javara cover

22. Operator monitor+MPG

23. Base leveling screw & foundation bolts

24. Transformer+G68(3D coordinate transformation)+G68.2

Optional accessories: (Extra cost)

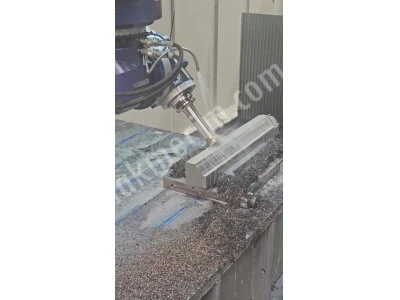

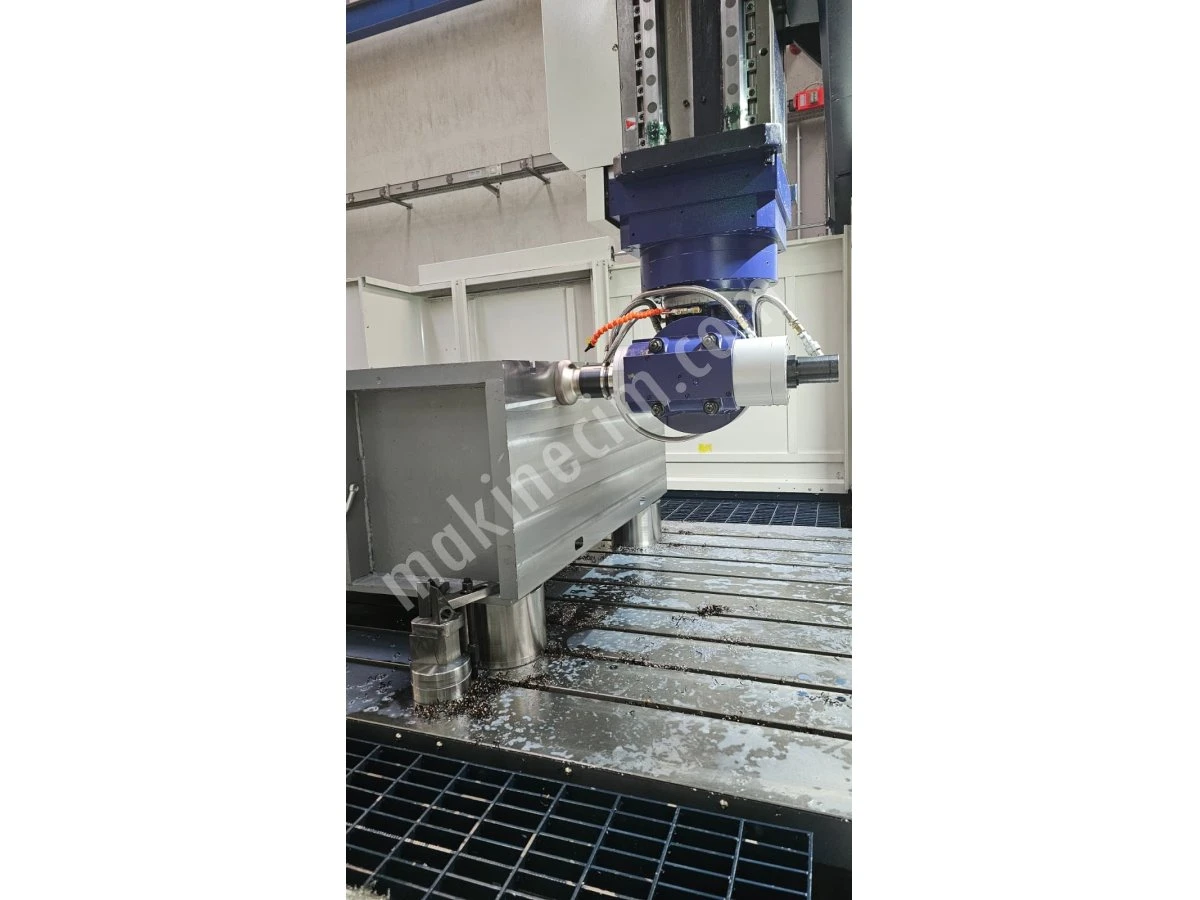

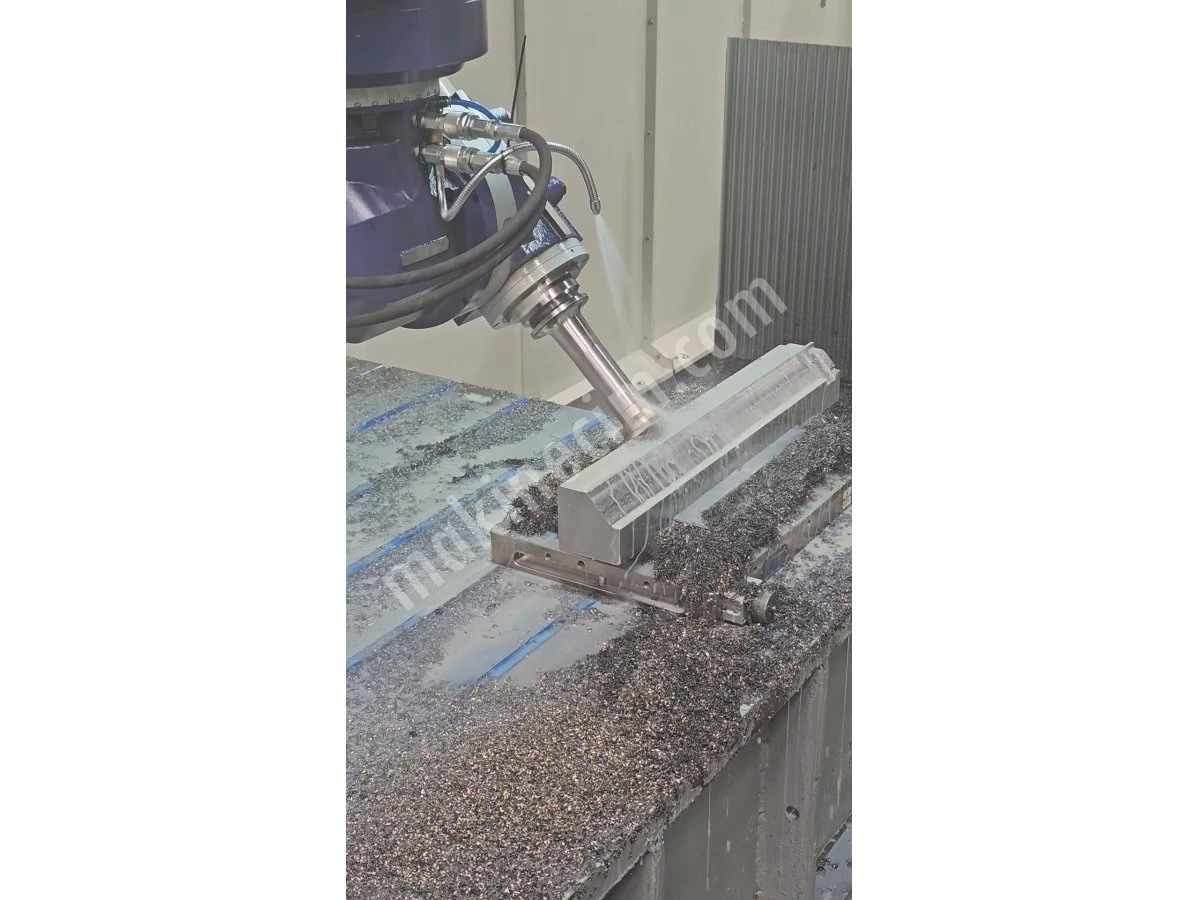

1-1) Semi-auto AC head (Auto head attachment, auto C:5°index,manual A:1° index, Booster cylinder, 2000rpm, 1000Nm) +CTS30bar

1-2) Toggle type head stand (for manual & semi auto typehead use)

2) Y +axis 650mm

3) Spindle with CTS30bar

4) Automatic attachment extension head (500 mm) with CTS(3000 rpm, 700 Nm)

5) AC head could ATC after operator confirm the headsituation
