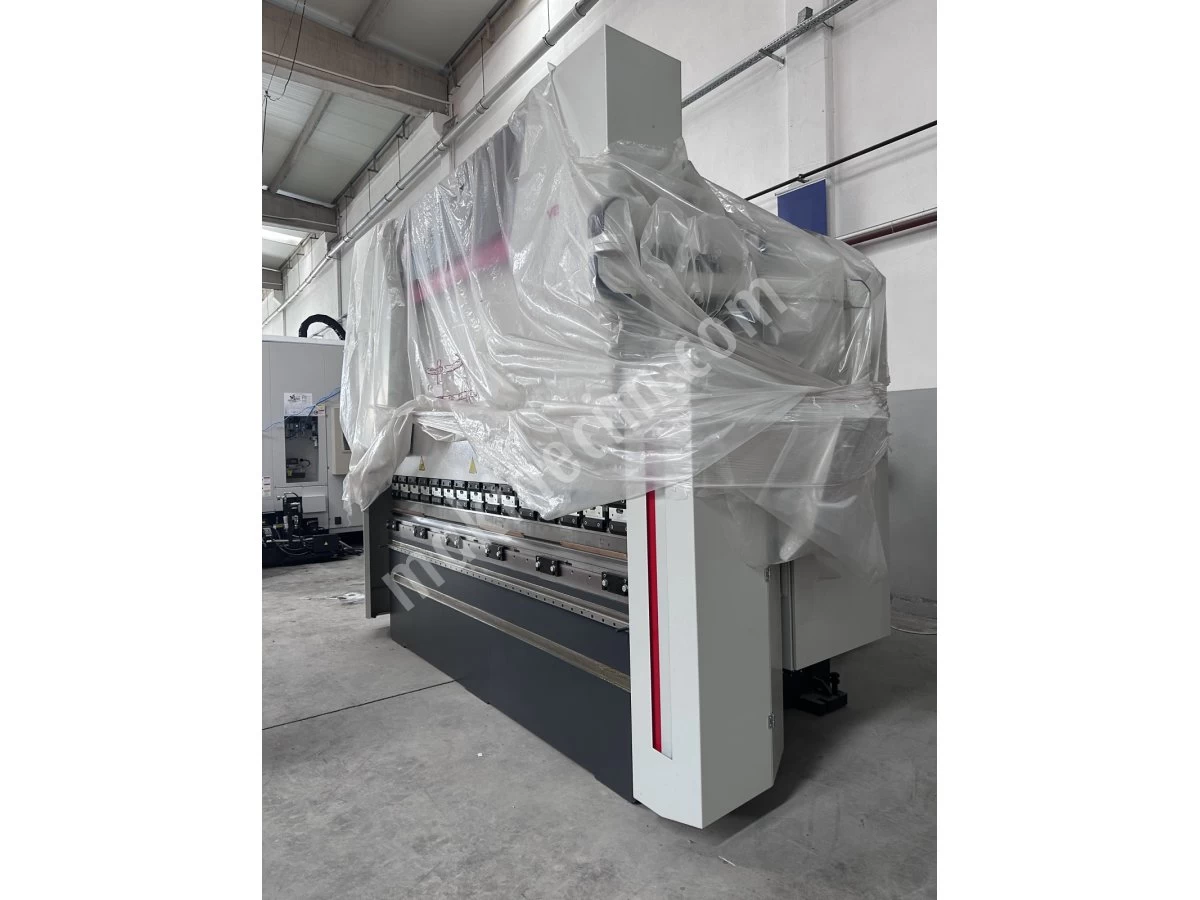

Dener Xl 3000 X 320 Ton Cnc Hydraulic Press Brake
| Price : | 64.750 $ |
| Ad Code : | M-450064 |
| Ad Type : | For Sale - New |
| Views : | 16 |
| Date Updated : | 27 Mar 2025 |
| Production Type : | Brand |
| Brand : | Dener |
| Model : | Puma Xl 3000x320 Ton |
| Production Year : | 2024 |
GENERAL FEATURES
Control Unit: Esa 640 (CNC 2D Graphic Display - Touch)
Axis Control: 4 Axis (Y1, Y2, X, R)
Back Support: (X, R) Axis
Front Support: Sliding Front Support Arms
Security: DSP Laser AP-TX-RX (MCS-PLC)
CE Certificate: Available
Throat Depth: 450 mm
Crowned: Motorized Crowning
Dqvwmt
Bottom Mold: Eurostamp_2067
Foot Pedal: Available
Bending Length: 3020 mm
Bending Capacity: 320 Tons
Distance Between Inner Walls: 2555 mm
Intermediate Clearance: 650 mm
Throat Depth: 450 mm
Y Axis Stroke: 400 mm
Y Axis Speeds (Descent/Work/Return): 140/10/120mm/sec
Table Height from Ground: 920 mm
Main Engine Power: 30 kW
Oil Tank Capacity: 400 lt
Machine External Dimensions (Length x Width x Height): 3800 x 2590 x 3080
Machine Approximate Weight: 14750 kg
VAT and other taxes are not included in the price.
GENERAL FEATURES
Control Unit: Esa 640 (CNC 2D Graphic Display - Touch)
Axis Control: 4 Axis (Y1, Y2, X, R)
Back Support: (X, R) Axis
Front Support: Sliding Front Support Arms
Security: DSP Laser AP -TX-RX (MCS-PLC)
CE Certificate: Available
Throat Depth: 450 mm
Crowned: Motorized Crowning
Bottom Mold: Eurostamp_2067
Foot Pedal: Available
Bending Length: 3020 mm
Bending Capacity: 320 Tons
Distance Between Inner Walls: 2555 mm
Intermediate Clearance: 650 mm
Throat Depth: 450 mm Y Axis Stroke : 400 mm
Y Axis Speeds (Descent/Work/Return) : 140/10/120 mm/sn
Table Height from Ground : 920 mm
Main Engine Power : 30 kW
Oil Tank Capacity : 400 lt
Machine External Dimensions (Length x Width x Height): 3800 x 2590 x 3080
Machine Approximate Weight: 14750 kg
